Custom Outrigger Expansion Cylinder Manufacturers, Factory

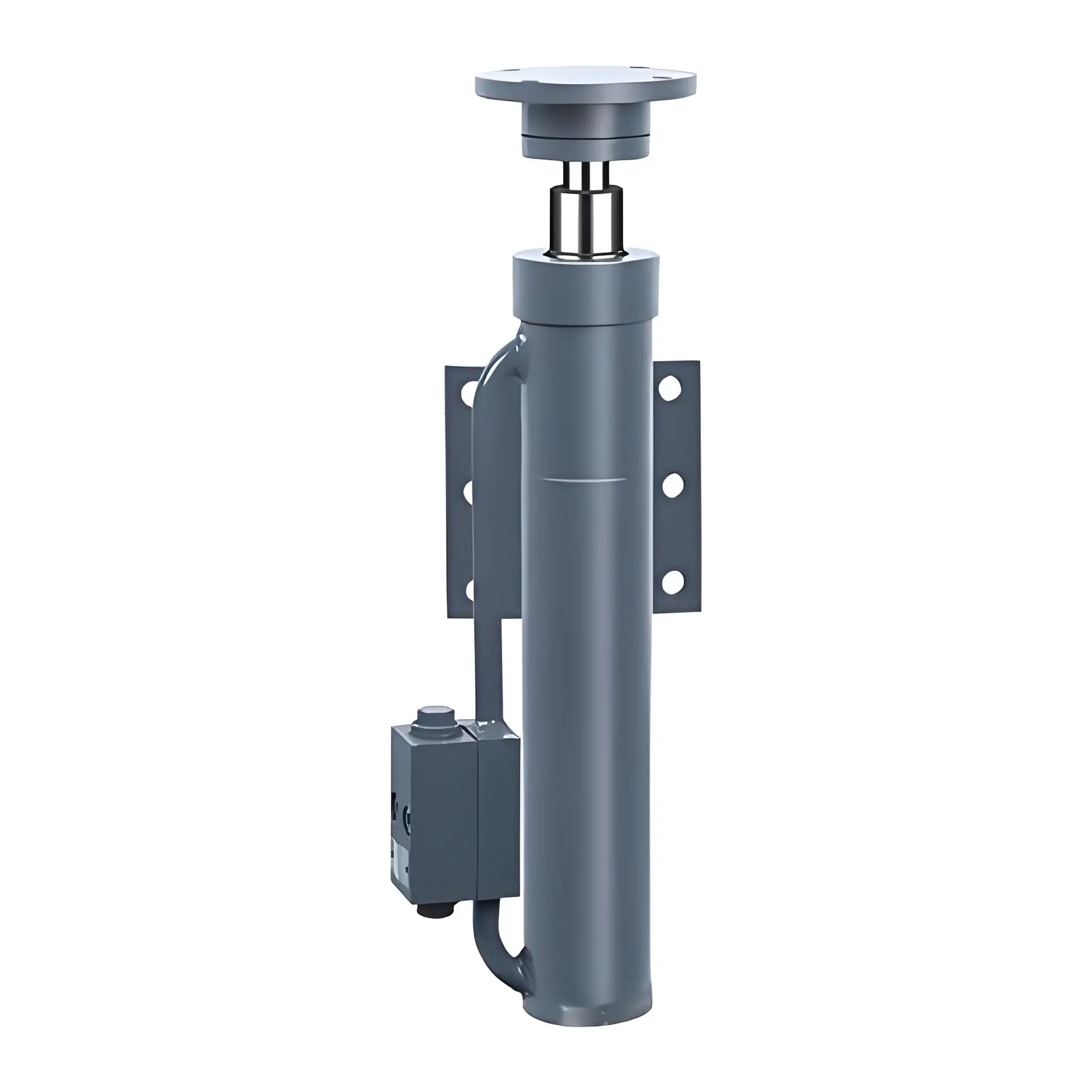

The crane outrigger expansion cylinder is the core hydraulic component of mobile cranes, truck-mounted cranes and other equipment. It is responsible for driving the deployment and retraction of the outriggers to ensure stability and safety during lifting operations.

Send Inquiry

Product Description

Description

Working Temperature Range is -40℃ ~ +100℃. Low temperature type supports -50℃ (special sealing required).

Overload Protection Built-in safety valve automatically releases pressure when it exceeds the limit to protect the outrigger structure.

Quick Response Optimized oil circuit design; deployment and retraction response time is ≤ 1 second.

Application Scenarios Construction sites, wind power installation, bridge construction, emergency rescue.

Service Support 2-year warranty on core components, video technical support, online support, and spare parts.

Quality Assurance Mechanical test reports and video factory inspections ensure high reliability.

Features

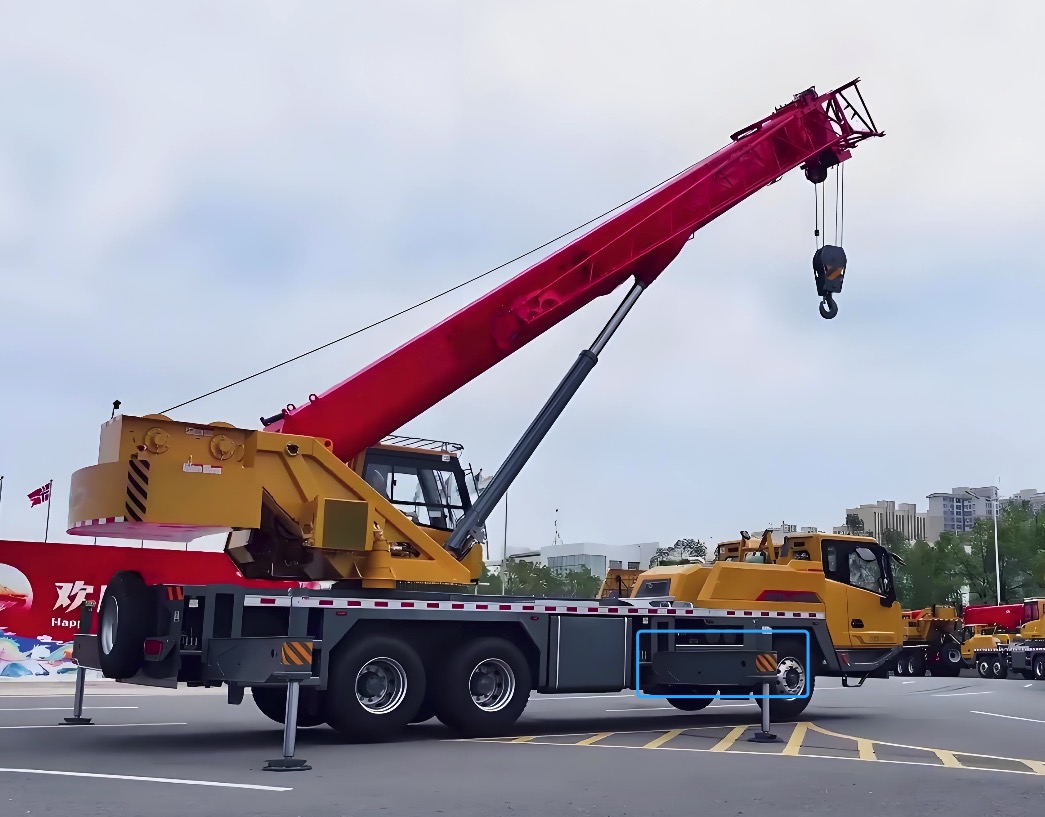

Extend the outrigger cylinder horizontally

Specification

Bore diameter	50mm~75mm
Rod diameter	25mm~55mm
Stroke	≤2500mm
Pressure	Maximum 35MPa
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint

Customization is our primary principle.

Application

With 20 years of experience in hydraulic cylinder manufacturing, our products are widely used in:

Construction Machinery Hydraulic lifting and steering cylinders for cranes, forklifts, tractors, loaders, and excavators.

Industrial Equipment Tie rod cylinders and compact hydraulic cylinders for diverse industrial needs.

Maritime & Offshore Heavy-duty cylinders and stainless steel hydraulic cylinders for ships and offshore machinery.

Customization

We can design and customize outrigger hydraulic cylinders according to your specific needs. Please provide the following technical parameters:

Bore Diameter
Rod Diameter
Stroke Length
Working Pressure
Installation Type
Push or Pull Back Capacity

Frequently Asked Questions

Q: What is the operating temperature range for these cylinders?

A: The standard range is -40℃ to +100℃. For extreme conditions, we offer a low-temperature type that supports down to -50℃ with special sealing.

Q: How does the overload protection system work?

A: Every cylinder includes a built-in safety valve that automatically releases pressure when it exceeds the design limit, preventing damage to the outrigger structure.

Q: What is the typical response time for deployment?

A: Thanks to our optimized oil circuit design, the response time for both deployment and retraction is less than or equal to 1 second.

Q: Can I request a customized hydraulic cylinder?

A: Yes, customization is our core service. We can adjust the bore, rod diameter, stroke, and installation type based on your technical requirements.

Q: What kind of warranty and after-sales support do you provide?

A: We provide a 2-year warranty on core components. Our support includes video technical guidance, spare parts availability, and online assistance.
