Custom Small Excavator Bulldozing Cylinder Manufacturer, Factory

Bulldozing Cylinder is a dozer device for 1-6 ton small excavators. It is mainly used to control the lifting and angle adjustment of the dozer blade. On small excavators, the bulldozing cylinder can effectively assist in completing tasks such as land leveling and site cleaning after excavation, thereby improving the operating efficiency and versatility of the excavator.

Send Inquiry

Product Description

Description

Working pressure: The general working pressure range is 10MPa~29.4MPa. The rated working pressure of some small excavator hydraulic systems is 10MPa, and the maximum allowable pressure is 16MPa.

Working temperature: The design has a wide temperature resistance range and can work normally in an environment of -40℃ to +120℃. We also provide customized services for cylinders with higher or lower temperatures.

Energy saving: Reduce energy loss and improve energy utilization efficiency through reasonable design and optimization of hydraulic circuits.

Comprehensive after-sales service: Customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance services.

Customizable and reliable: As a non-standard product, we meet specific requirements. Our mechanical test reports and video factory inspections ensure product quality and reliability.

Features

Precise control over the action and movement of the bulldozer for enhanced operational efficiency.

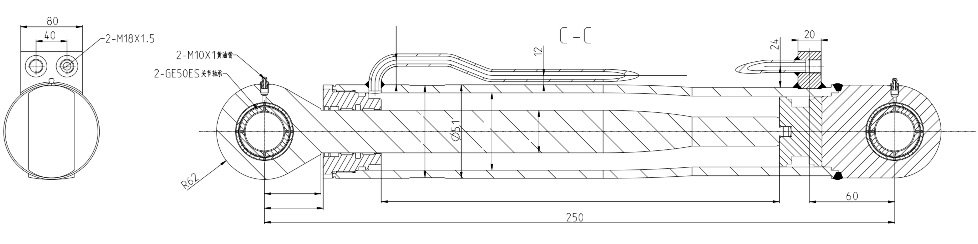

Specification

Bore diameter	50mm ~ 140mm
Rod diameter	25mm ~ 80mm
Stroke	≤ 250mm
Thrust force	Maximum 453KN (Bore 140mm / Pressure 29.4MPa)
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Note	Customization is our first principle.

Service & Applications

With 20 years of experience as hydraulic cylinder manufacturers, our cylinders are primarily used in:

Construction machinery: Hydraulic lifting and steering cylinders for cranes, forklifts, tractors, loaders, and excavators.
Industrial equipment: Tie rod cylinders and compact cylinders.
Ships and offshore machinery: Heavy-duty and stainless steel hydraulic cylinders.

Provide us with these technical parameters for customized design:

1. Bore Diameter
2. Rod Diameter
3. Stroke Length
4. Working Pressure
5. Installation Type
6. Push/Pull Capacity

Frequently Asked Questions

What is the standard working pressure for your hydraulic cylinders?

Our cylinders typically operate within a range of 10MPa to 29.4MPa, depending on the specific application and requirements.

Can the cylinders withstand extreme weather conditions?

Yes, our standard designs support temperatures from -40°C to +120°C. We also offer specialized customization for even more extreme temperature environments.

What kind of customization options do you provide?

We specialize in non-standard products. You can customize the bore, rod diameter, stroke, material (carbon/alloy/stainless steel), and mounting type.

What is the warranty period for the hydraulic cylinders?

We provide a comprehensive 2-year warranty on all core components, along with video technical support and spare parts services.

Do you provide quality inspection reports before shipping?

Absolutely. We provide detailed mechanical test reports and offer video factory inspections to ensure the highest reliability before the product leaves our facility.

Which industries typically use these hydraulic cylinders?

Our products are widely used in construction machinery (excavators, loaders), industrial equipment, and offshore or marine applications.
