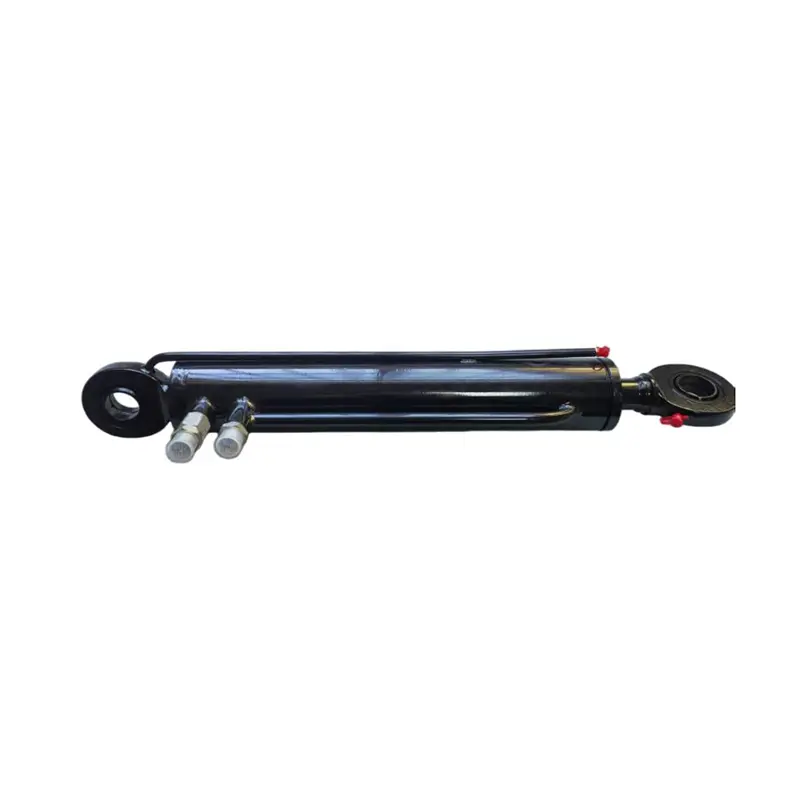

High-Quality Single Rod Double Acting Steering Cylinder Manufacturers, Factories

Single rod double actingÂ steering cylinder is one of the key components of the loader, primarily functioning to enable steering operations and provide necessary power assistance. In addition to loaders, it is also widely used in other equipments within the realms of construction machinery, mining machinery and agricultural machinery etc.

Send Inquiry

Product Description

Description

Operating Parameters

Working pressure: Generally around 5-15MPa.

Working temperature: Designed range is usually -25℃ to +120℃, with specific products capable of -20℃ to 120℃.

Performance & Support

Strong adaptability: Performs in harsh environments (high/low temperature, humidity, dust).

Good buffering: Equipped with buffering devices to reduce impact and vibration.

After-sales service: 2-year warranty on core components, video technical support, online support, and spare parts.

Features

Simple Structure: Consists of essential components like the cylinder, piston, piston rod, and end cover. Without complex two-way oil circuits, the manufacturing is cost-effective and installation is straightforward.

Compact Design: The single rod steering cylinder requires rod extension space on only one side. This allows for compact installation in equipment with limited space, significantly improving space utilization.

Specification

Inner diameter	60 mm
Rod diameter	30 mm
Stroke	≤ 230 mm
Material	Carbon steel, alloy steel, stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Customization is our first principle.

Product Video

Application

With 20 years of manufacturing experience, these cylinders are primarily used in:

Construction Machinery

Hydraulic lifting and steering cylinders for cranes, forklifts, tractors, loaders, and excavators.

Industrial Equipment

Hydraulic cylinders, tie rod cylinders, and compact cylinders for various industrial uses.

Ships & Offshore

Heavy-duty cylinders and stainless steel hydraulic cylinders for marine environments.

Customization

Provide the following technical parameters for a custom-designed single rod double acting steering cylinder:

Bore Size
Rod Diameter
Stroke Length
Working Pressure
Installation Type
Push/Pull Capacity

Frequently Asked Questions

Q1: What is the typical working pressure for these steering cylinders?

A: The working pressure is generally maintained between 5-15MPa to ensure optimal performance and safety.

Q2: Can the cylinders withstand extreme temperatures?

A: Yes, they are designed to operate within a temperature range of -25℃ to +120℃, making them suitable for harsh environments.

Q3: What materials are available for the cylinder construction?

A: We offer cylinders made from high-quality carbon steel, alloy steel, and stainless steel depending on your application requirements.

Q4: Are your steering cylinders customizable?

A: Absolutely. Customization is our core principle. We can adjust the bore, rod diameter, stroke, and installation type to meet your specific technical needs.

Q5: What kind of warranty and support do you provide?

A: We provide a 2-year warranty on core components, along with video technical support, online assistance, and spare parts availability.

Q6: Why choose a single rod steering cylinder over other types?

A: Single rod cylinders are more compact and easier to install in equipment with limited space. They are also cost-effective and simpler to maintain.
