China Outrigger Cylinder HCO701 Suppliers, Manufacturer

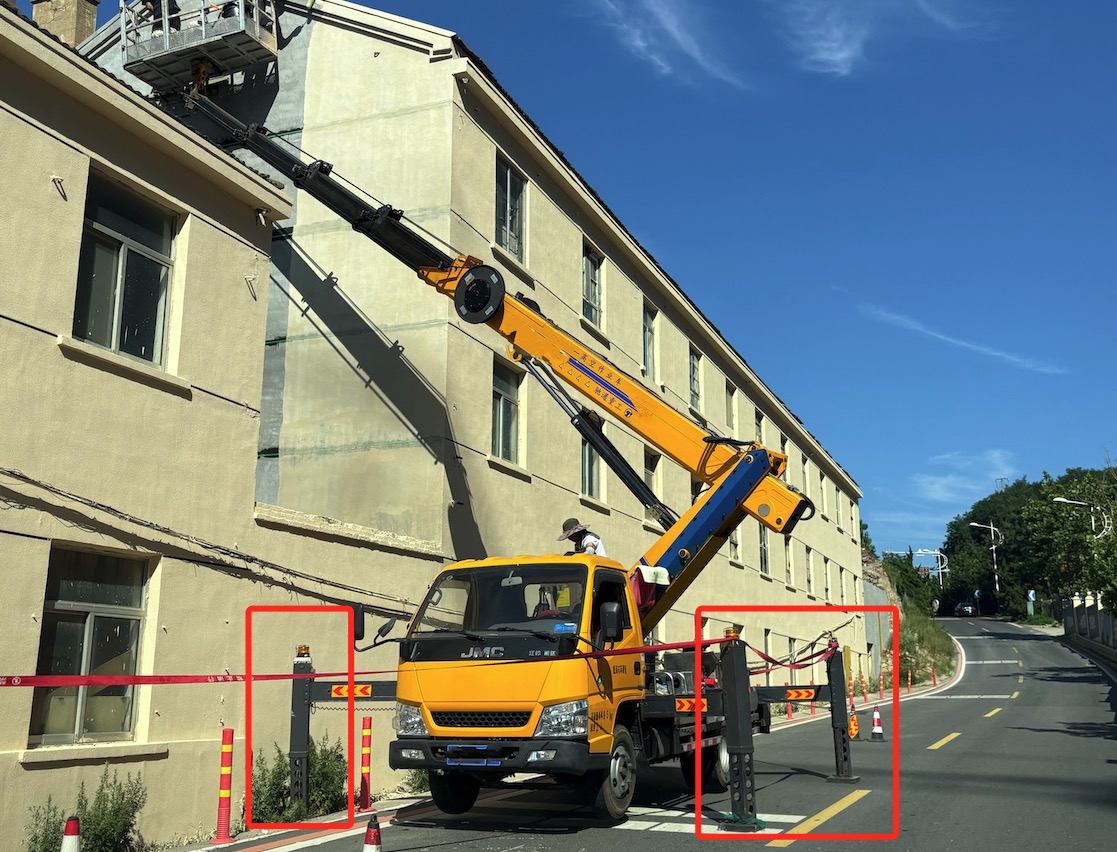

The outrigger cylinder is the core hydraulic component of the aerial work platform, mainly used to support and stabilize the equipment to ensure the safety and balance of the whole machine during operation.

Send Inquiry

Product Description

Description

Standard Operating Temperature -20℃ ～ +60℃

Control Mode Standard bidirectional hydraulic lock to prevent accidental retraction; optional pressure sensor or displacement feedback for real-time monitoring.

Multi-stage Seal Effective design to prevent hydraulic oil leakage and reduce the entry of external impurities into the cylinder.

Easy Installation Standardized interface for quick connection with hydraulic systems and aerial work platform components.

After-Sales Service Enjoy a 2-year warranty on core components, video technical support, online support, and spare parts availability.

Reliable Quality Mechanical test reports and video factory inspections ensure high performance and reliability for non-standard products.

Features

Support the weight of the entire equipment when the crane is lifting, ensuring maximum stability and safety.

Specification

Bore diameter	45mm~200mm
Rod diameter	30mm~180mm
Stroke	≤2000mm
Pressure	30MPa (Maximum pressure)
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Customization is our first principle.

Application

With 20 years of manufacturing experience, these cylinders are widely utilized in:

Construction Machinery

Lifting and steering for cranes, forklifts, tractors, loaders, and excavators.

Industrial Equipment

Tie rod cylinders and compact hydraulic solutions for industrial lines.

Marine & Offshore

Heavy-duty and stainless steel cylinders for ships and offshore machinery.

Customization Requirements

To design and customize your Outrigger Hydraulic Cylinder, please provide the following technical parameters:

Bore Diameter
Rod Diameter
Stroke Length
Working Pressure
Installation Type
Push or Pull Capacity

Frequently Asked Questions

1. What is the standard operating temperature range for these cylinders?

The standard operating temperature range is between -20℃ and +60℃, suitable for most industrial and construction environments.

2. Can I customize the bore and stroke dimensions?

Yes, customization is our specialty. We can manufacture cylinders with bore diameters from 45mm to 200mm and strokes up to 2000mm based on your requirements.

3. What kind of warranty do you provide?

We provide a comprehensive 2-year warranty on all core components, along with video technical support and online maintenance assistance.

4. How do you prevent hydraulic oil leakage?

Our cylinders utilize a multi-stage seal design that effectively prevents oil leakage and protects the internal system from external impurities.

5. Are your products tested before shipping?

Yes, every product undergoes mechanical testing. We also offer video factory inspections and provide test reports to ensure quality and reliability.

6. What materials are used for cylinder construction?

Depending on the application, we use high-grade Carbon steel, Alloy steel, or Stainless steel to ensure durability and performance.
