ODM Lifting cylinder HCL602 Manufacturers, Factories

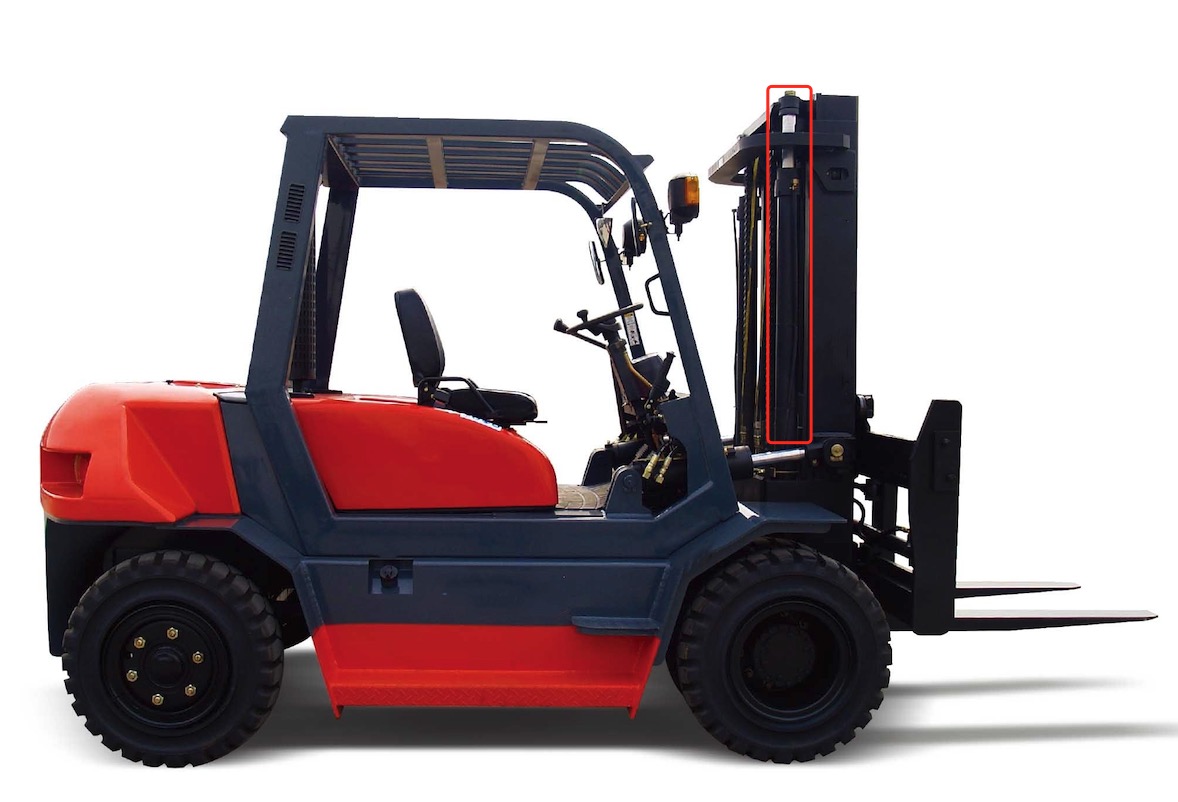

The lifting cylinder is one of the core actuators of the forklift hydraulic system, responsible for converting hydraulic energy into mechanical energy to drive the lifting and lowering of the fork. It is suitable for cargo loading and unloading scenarios of various forklifts (such as electric forklifts and internal combustion forklifts).

Send Inquiry

Product Description

Description

Working temperature: Applicable temperature range -20℃ ~ +80℃. Cold-resistant hydraulic oil and sealing materials are used at low temperatures to avoid low-temperature hardening failure. Chrome-plated piston rods and wear-resistant cylinders are used at high temperatures to resist high-temperature deformation.

Two-stage buffer structure: Hydraulic buffer at the end reduces impact noise and prolongs service life.

Compatibility: Flange type/earring type suitable for mainstream forklift brands (Toyota, Heli, Hangcha, etc.).

After-sales service: Enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.

Customizable and reliable: As a non-standard product, we meet specific requirements. Mechanical test reports and video factory inspections ensure quality and reliability.

Features

Precise control over the lifting and lowering action of the fork for optimal operational efficiency.

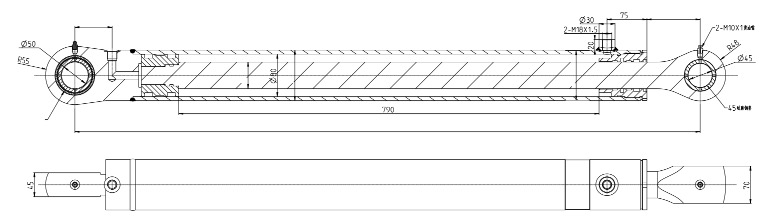

Specification

Counterweight tonnage	1-16T
Bore diameter	40~115mm
Rod diameter	28~60mm
Work Pressure	9~16MPa
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Customization is our primary design principle.

Service

With 20 years of expertise in hydraulic cylinder manufacturing, our products are widely utilized in:

Construction Machinery

Hydraulic lifting cylinders and steering cylinders for cranes, forklifts, tractors, loaders, and excavators.

Industrial Equipment

Tie rod cylinders, compact cylinders, and specialized industrial hydraulic solutions.

Ships & Offshore

Heavy-duty cylinders and stainless steel hydraulic cylinders designed for marine environments.

Customization Parameters

Provide the following technical parameters for a bespoke loader tilt cylinder design:

Bore Diameter
Rod Diameter
Stroke Length
Working Pressure
Installation Type
Push or Pull Back Capacity

Frequently Asked Questions

What is the operating temperature range for these cylinders?

The cylinders are designed to operate efficiently between -20℃ and +80℃, using specialized cold-resistant oil and chrome-plated rods for extreme conditions.

Which forklift brands are compatible with your cylinders?

Our flange and earring type cylinders are compatible with major brands including Toyota, Heli, Hangcha, and other mainstream manufacturers.

What kind of warranty is provided?

We offer a comprehensive 2-year warranty on core components, alongside video technical support and online maintenance assistance.

Can I request a custom cylinder design?

Yes, customization is our specialty. By providing parameters like bore, stroke, and pressure, we can engineer a cylinder tailored to your specific needs.

What materials are used for the hydraulic cylinders?

We use high-grade materials including Carbon Steel, Alloy Steel, and Stainless Steel, depending on the application and environmental requirements.

How do you ensure the quality of non-standard products?

Every custom product undergoes rigorous mechanical testing, and we provide mechanical test reports and video factory inspections for full transparency.
