Custom Luffing Cylinder HCL604 Supplier, Manufacturers

Custom Luffing Cylinder HCL604 Supplier, Manufacturers

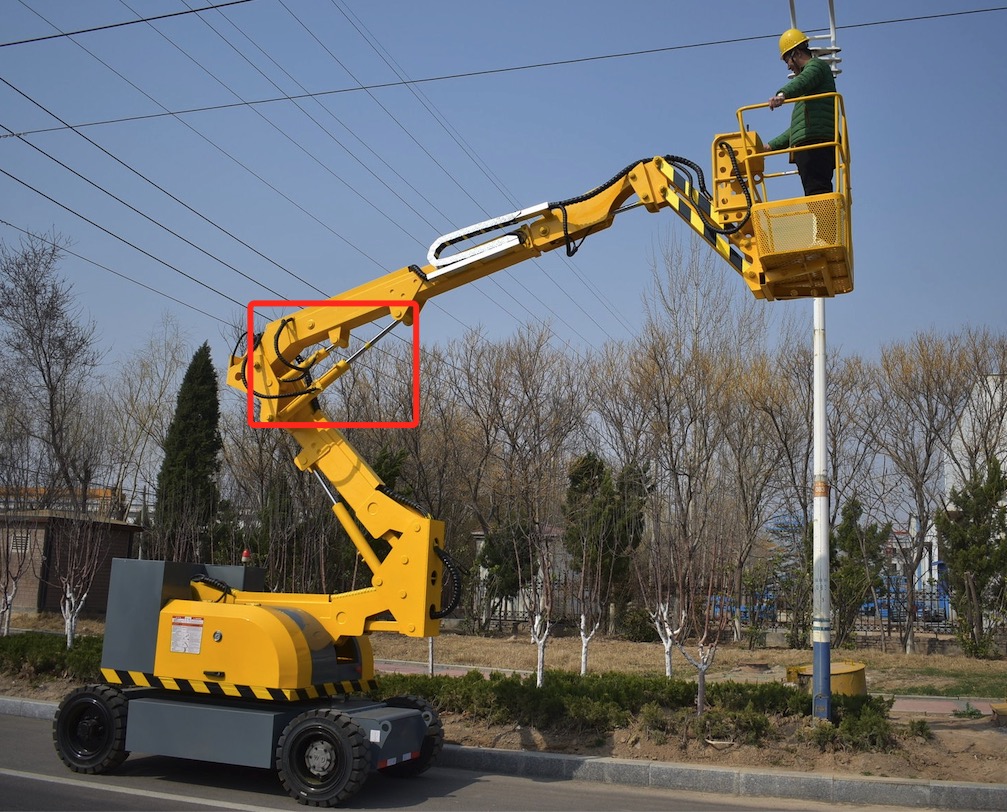

The luffing cylinder is the core hydraulic actuator of the aerial work platform, which is mainly used to control the pitch angle of the boom and accurately adjust the height and horizontal position of the work platform. It uses hydraulic drive to achieve smooth lifting and lowering of the boom and adjust the elevation angle of the working arm to meet different work requirements.

Send Inquiry

Product Description

Product Description

Anti-lateral force The guide sleeve and piston rod are reinforced with hard chrome plating to increase the anti-eccentric load capacity by 30%.

Long Life Cycle Service life under normal conditions reaches or exceeds 100,000 cycles.

Multi-stage Seal Designed to effectively prevent hydraulic oil leakage and reduce the entry of external impurities.

Comprehensive Support Enjoy a 2-year warranty on core components, including video technical support and spare parts availability.

Key Features

Our cylinders provide the main driving force for lifting, effectively realizing the up and down pitching rotation of the boom.

Technical Specifications

Bore diameter	50mm ~ 350mm
Rod diameter	30mm ~ 300mm
Stroke	≤ 3000mm
Maximum Pressure	30MPa
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer, middle paint, finish paint
Customization is our primary design principle.

Hydraulic Cylinder Specification

Industry Applications

With 20 years of manufacturing expertise, our cylinders are widely utilized in:

Construction Machinery Lifting and steering cylinders for cranes, forklifts, tractors, loaders, and excavators.

Industrial Equipment Tie rod cylinders and compact hydraulic solutions for various factory machinery.

Maritime & Offshore Heavy-duty and stainless steel hydraulic cylinders for ships and offshore platforms.

Customization Requirements

Custom Design Parameters

To provide a tailored hydraulic solution, please specify the following:

Bore and Rod Diameter
Stroke Length
Working Pressure Requirements
Installation/Mounting Type
Push or Pull Back Capacity

Frequently Asked Questions

1. What is the maximum pressure capacity of your hydraulic cylinders?

Our cylinders are designed to handle a maximum working pressure of up to 30MPa, depending on the specific model and material used.

2. Can I request a custom size for the bore and stroke?

Yes, customization is our specialty. We can manufacture bore diameters from 50mm to 350mm and strokes up to 3000mm based on your technical needs.

3. What materials are available for the cylinder construction?

We offer a range of materials including Carbon Steel, Alloy Steel, and Stainless Steel to ensure durability in different operating environments.

4. How do you ensure the longevity of the cylinder seals?

We use a multi-stage seal design combined with hard chrome plating on the piston rod to prevent leakage and protect against external contaminants.

5. What kind of after-sales support do you provide?

We provide a 2-year warranty on core components along with video technical support, online assistance, and spare parts supply.

6. Are these cylinders suitable for marine environments?

Absolutely. Our stainless steel hydraulic cylinders are specifically engineered for ships and offshore machinery to resist corrosion.
