OEM Leveling Cylinder HCL603 Suppliers, Manufacturer

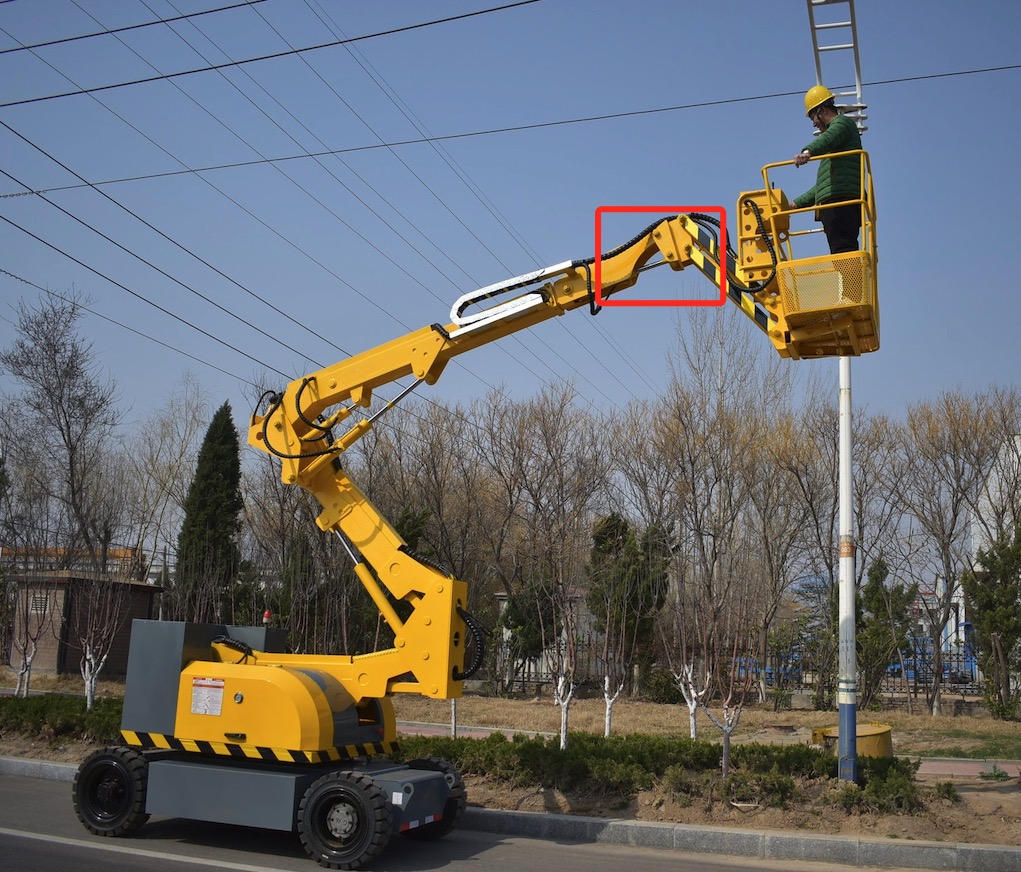

The leveling cylinder is a key hydraulic actuator for aerial work platforms. It is used to achieve automatic or manual leveling of the platform under complex working conditions to ensure the stability and safety of the platform during operation.

Send Inquiry

Product Description

Description

Installation Method Supports single-ear, double-ear, welded pipe, punching, and other installation methods, suitable for the structural design of aerial work platforms.

Energy-saving & Efficiency Load feedback technology optimizes energy consumption, combined with an intelligent control system to achieve micro-leveling and quick response.

Wide Temperature Range Standard range -20°C to +60°C, with extensions available for -30°C to +80°C to suit various climatic conditions.

After-Sales Service 2-year warranty on core components, including video technical support, online support, spare parts, and on-site maintenance.

Customizable & Reliable Tailored to specific requirements with mechanical test reports and video factory inspections to ensure product quality.

Key Features

Precisely adjust the angle of the aerial work platform for optimal performance and safety.

Technical Specifications

Bore diameter	85mm ~ 180mm
Rod diameter	50mm ~ 100mm
Stroke	≤ 300mm
Pressure	30MPa (Maximum pressure)
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Customization is our primary principle.

Applications

With 20 years of manufacturing expertise, our hydraulic cylinders are widely utilized in:

Construction Machinery Lifting and steering cylinders for cranes, forklifts, tractors, loaders, and excavators.

Industrial Equipment Tie rod cylinders, compact cylinders, and general hydraulic solutions.

Marine & Offshore Heavy-duty cylinders and specialized stainless steel hydraulic components.

Customization

Provide us with the following technical parameters to design your custom Outrigger Hydraulic Cylinder:

Bore size requirements
Rod diameter specifications
Stroke length
Desired working pressure
Installation type (single-ear, double-ear, etc.)
Push or pull back capacity

Frequently Asked Questions

What installation methods do you support?

We support a wide range of installation methods including single-ear, double-ear, welded pipe, and punching, specifically designed for aerial work platform structures.

What is the standard operating temperature for your cylinders?

The standard operating range is -20°C to +60°C. For extreme environments, we can provide specialized products that operate between -30°C and +80°C.

Do you offer customization for non-standard requirements?

Yes, customization is our core principle. We can design cylinders based on your specific bore, rod diameter, stroke, and pressure requirements.

What materials are available for hydraulic cylinder construction?

We use high-quality materials including Carbon Steel, Alloy Steel, and Stainless Steel, depending on the application and environmental needs.

What kind of warranty and after-sales support is provided?

We offer a 2-year warranty on core components along with comprehensive support including video technical assistance, online help, and spare parts.

How is the product quality ensured?

Every product comes with a mechanical test report. We also provide video factory inspections to guarantee reliability and compliance with your specifications.
