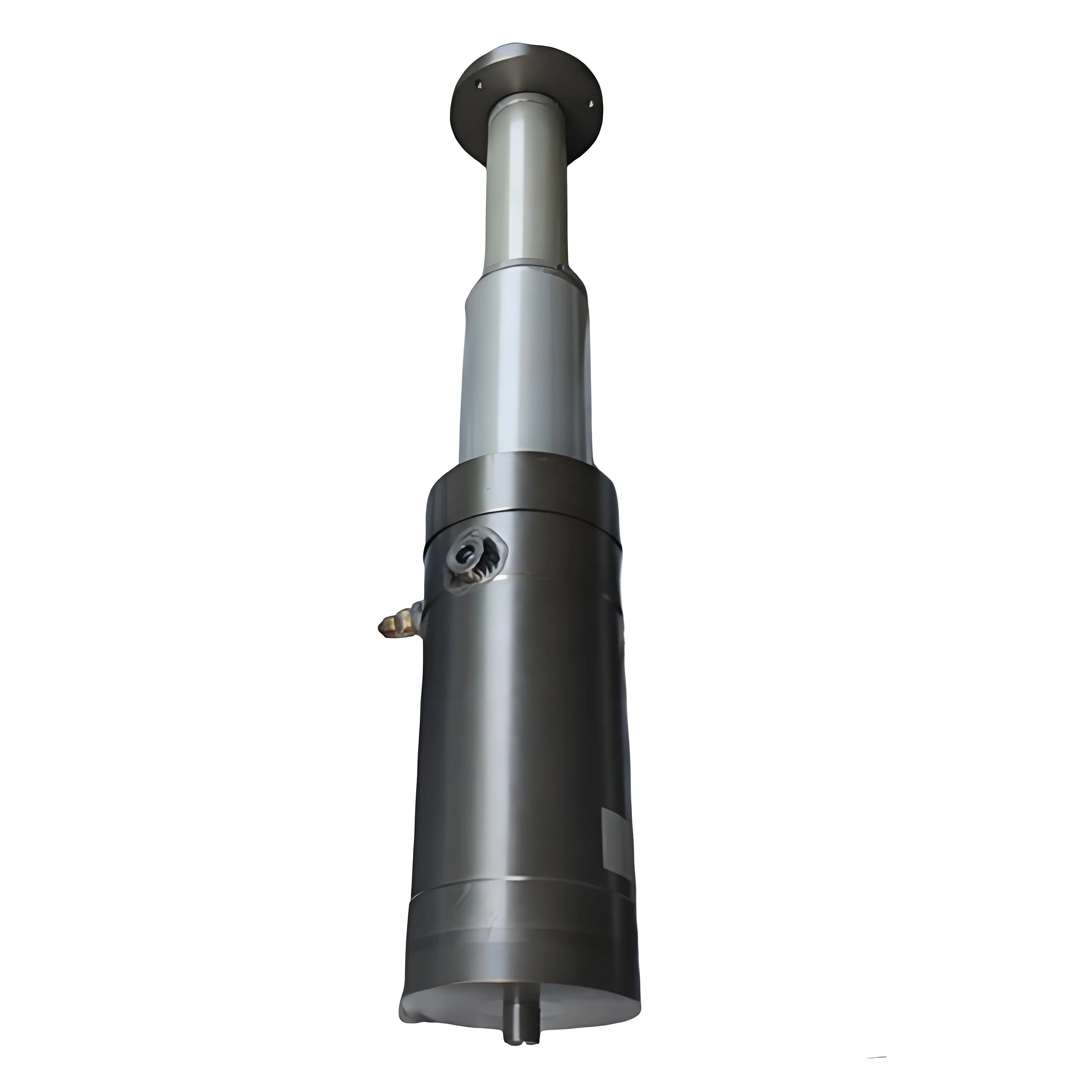

ODM 3 stage Telescopic cylinder Manufacturers, Factories

The three stage telescopic cylinder is a high-performance hydraulic actuator, which is widely used in engineering machinery, aerial work platforms, cranes, etc. Its unique three-stage telescopic structure design enables the cylinder to achieve a large telescopic stroke in a limited space, meeting the operating requirements of the equipment under different working conditions.

Send Inquiry

Product Description

Description

●

Multi-stage telescopic design: The three-stage cylinders are nested step by step, and the maximum stroke can reach more than 3 times that of a single-stage cylinder. After contraction, the total length is shortened by 50%~70%, saving installation space.

●

Temperature range: The standard operating temperature range is -30℃ to +80℃, and some products can be extended to -40℃ to +100℃, suitable for various climatic conditions.

●

Retraction sequence: synchronous extension, step-by-step retraction

●

Comprehensive after-sales service: Customers can enjoy a 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance and repair services.

●

Customizable and reliable: As a non-standard product, we can meet customers' specific requirements, and our mechanical test reports and video factory inspections ensure the quality and reliability of the products.

Specification

Cylinder diameter	80mm ～ 200mm
Rod diameter	50mm ～ 120mm
Stroke	500mm ～ 3000mm
Working pressure	14MPa ～ 35MPa
Maximum thrust	Depending on the cylinder diameter and pressure, the maximum thrust can reach more than 500kN
Material	Carbon steel, Alloy steel, Stainless steel
Coating	Sandblasting, primer paint, middle paint, finish paint
Customization is our primary principle.

Application

With 20 years of experience in hydraulic cylinder manufacturing, our cylinders are primarily used in:

Construction machinery

Hydraulic lifting cylinders and steering cylinders for cranes, forklifts, tractors, loaders, and excavators.

Industrial equipment

Standard hydraulic cylinders, tie rod cylinders, and compact cylinders.

Ships and offshore

Heavy-duty cylinders and stainless steel hydraulic cylinders.

Agricultural Machinery

Tilting cylinders, compact cylinders, and steering cylinders for agricultural use.

Customization Service

If you provide the following technical parameters, we can design and customize outrigger hydraulic cylinders according to your specific needs:

Bore Size
Rod Diameter
Stroke Length
Working Pressure
Installation Type
Push/Pull Capacity

Frequently Asked Questions

What are the benefits of the multi-stage telescopic design?

The multi-stage design allows for a much longer stroke compared to the cylinder's retracted length. It can save between 50% to 70% of installation space while providing a stroke over three times the length of a single-stage cylinder.

What is the standard working temperature for these cylinders?

The standard range is -30℃ to +80℃. For extreme environments, we offer specialized versions that can operate from -40℃ up to +100℃.

Can the cylinders be customized for specific pressures?

Yes, our cylinders are designed to handle working pressures ranging from 14MPa up to 35MPa, depending on your application requirements.

What materials are available for construction?

We offer a variety of high-quality materials including Carbon Steel, Alloy Steel, and Stainless Steel to ensure durability and corrosion resistance based on the operating environment.

What kind of warranty and support do you provide?

We provide a 2-year warranty on core components. Additionally, we offer video technical support, online assistance, spare parts, and on-site maintenance services to ensure long-term reliability.

Is the retraction sequence synchronized?

The cylinders are engineered for synchronous extension and a step-by-step retraction sequence to ensure stable and safe operation.
