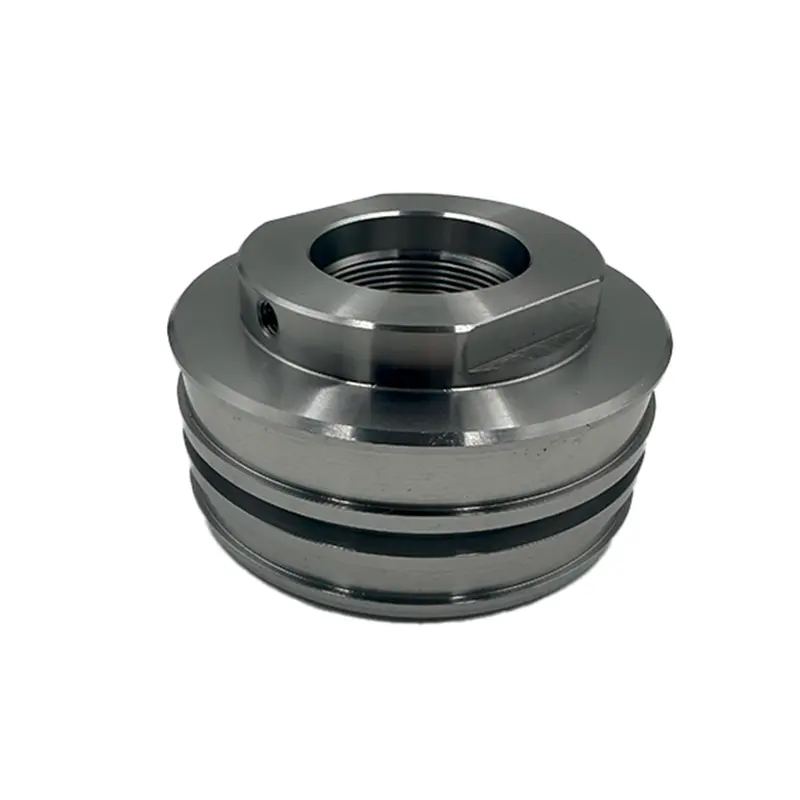

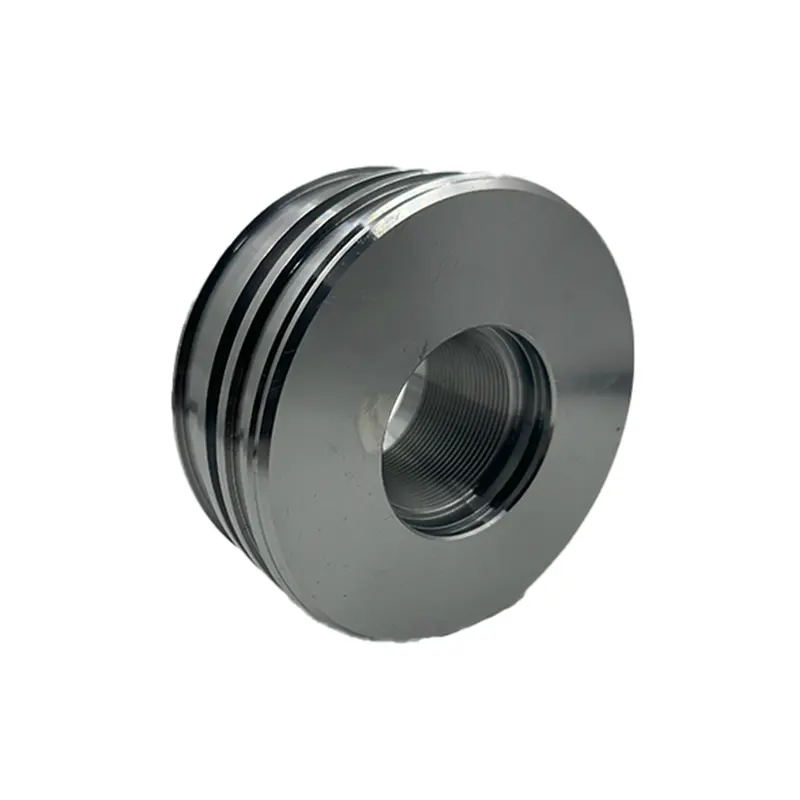

The outer diameter accuracy of the hydraulic cylinder piston can reach ±0.01mm, the cylindrical error is controlled within 0.005mm, and the surface roughness Ra is as low as 0.2μm - 0.4μm. This ensures high-precision matching with the inner wall of the cylinder, effectively reducing leakage, reducing friction loss, and extending the service life of the piston and the entire hydraulic cylinder.

According to different working environments and media, high-quality sealing materials such as fluororubber and nitrile rubber are selected to ensure the compatibility and stability of the seals and hydraulic oil.

In order to enhance the hardness and wear resistance of the piston surface and improve the service life, the piston surface is subjected to special anti-corrosion treatment, such as chrome plating, nickel plating or chemical coating.

When working, under the action of the hydraulic oil pressure difference, the piston moves linearly along the cylinder, converting hydraulic energy into mechanical energy to drive the external load. It is widely used in various hydraulic systems.

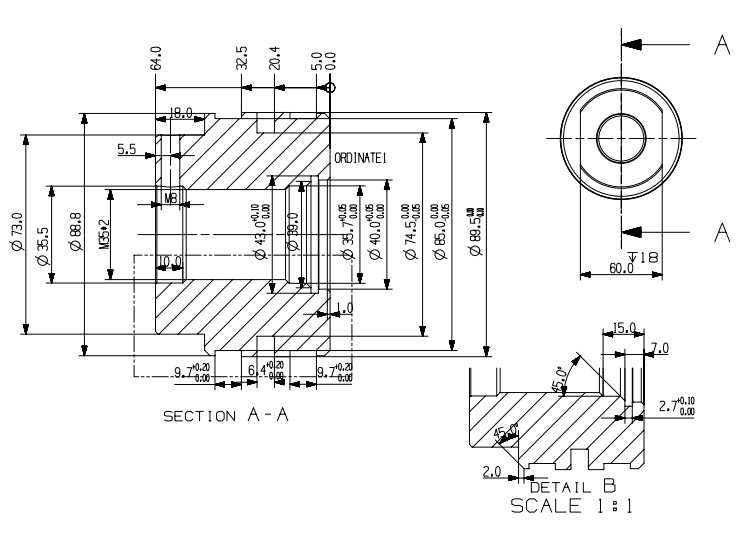

Drawing reference

Material：Carbon steel, Alloy steel, Stainless steel

Surface Treatment：Polishing, Deburring, Chrom Plate, Ni Plated, Zine plated, Silver plating

Customization is the first principle.

Providing the following hydraulic cylinder accessories services to global customers for decades:

• Business Type: OEM & ODM Manufacturer (Custom CNC Machining Services)
• DRW Format: DWG, PDF, IGS, STEP, SLDPRT, SLDDRW, PRT, DRW, DXF, X_T, etc.
• Equipment: CNC Milling Machines, CNC Lathes, Oblique Guide NC Lathe
• QC System: ISO9001: 2008

Our Advantages:

• Reliable Quality
• Competitive Price
• High precision, high quality, tight tolerance
• Continuous Improvement
• Defect-Free Products
• On-Time Delivery
• Customer Satisfaction
• Excellent After-Sales Service
