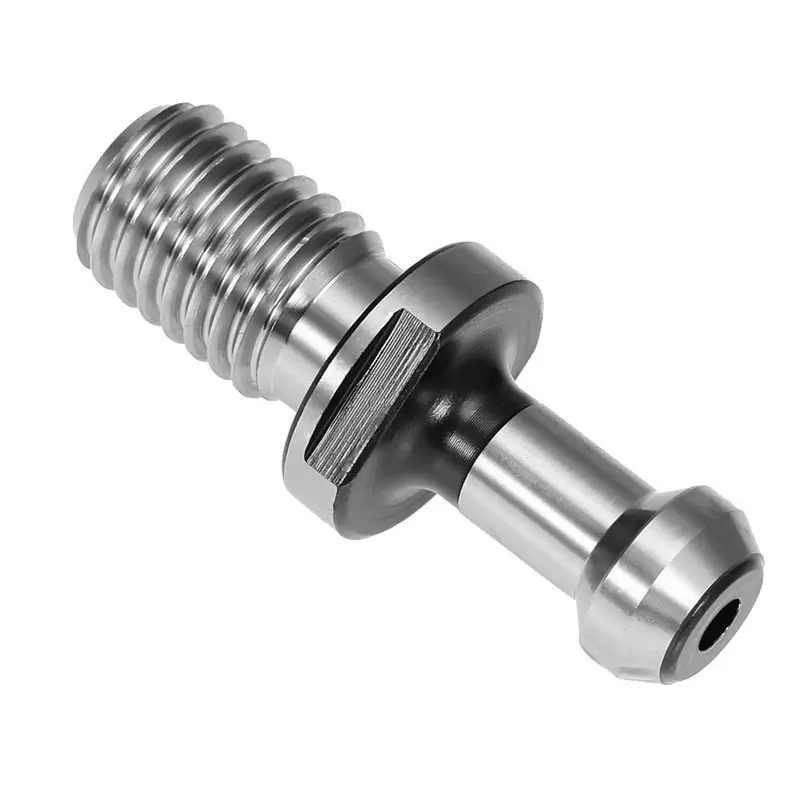

JIS retention knob, alternatively known as a pull stud, is designed for CNC machining centers adhering to Japanese industrial standards. It servesÂ to secure the tool holder ontoÂ the spindle and must endure high-intensity cutting forces.

Send Inquiry

Product Description

Description

Material of retention knob is usually alloy steel such as 40Cr, 45# steel etc. JIS retention knob is a connecting component between machining centers and cutting tools, directly responsible for fixing the tools and withstanding high-intensity cutting forces. Their quality is related to machining accuracy and stability. Improper use can cause damage to the spindle or scrapping of the workpiece.

It is usually made of high-quality steel such as 20CrMnTi, and undergoes carburizing and quenching treatment. The surface is hard and wear-resistant, while the interior is tough. It has good fatigue resistance and can remain stable during high-speed processing.

According to the JIS B6339 standard, there is only one type of retention knob. The slope Angle of the retention knob is 15 degrees and it is used in tensioning devices without steel balls, with the code "xxP".

Features

1. High Precision and Dimensional Stability The dimensional accuracy and positional tolerance requirements are strict to ensure the precise fit with the tool holder and the spindle.

2. Mechanical Property Equilibrium After targeted heat treatment, it possesses appropriate hardness and toughness, capable of withstanding tensile and impact forces during processing.

3. Reliable Consistency In accordance with JIS standards, performance fluctuations across batches are minimized, ensuring interchangeability and easy maintenance.

Parameter

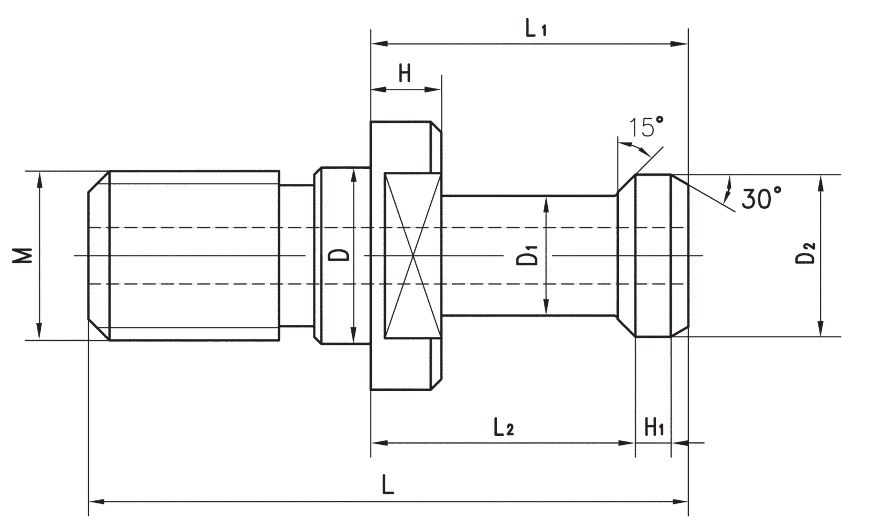

Model No.	D	D1	D2	M	L	L1	L2	H	H1
LDJ-30P	12.5	8	12	M12	43	23.4	18.4	5	3
LDJ-35P	12.5	11	15	M12	44	24	19	5	3
LDJ-40P	17	14	19	M16	54	29	23	7	3
LDJ-45P	21	17	23	M20	60	30	23	7	4
LDJ-50P	25	21	28	M24	74	34	25	7	5
LDJ-55P	31	27	36	M30	98	48	36	11	7
