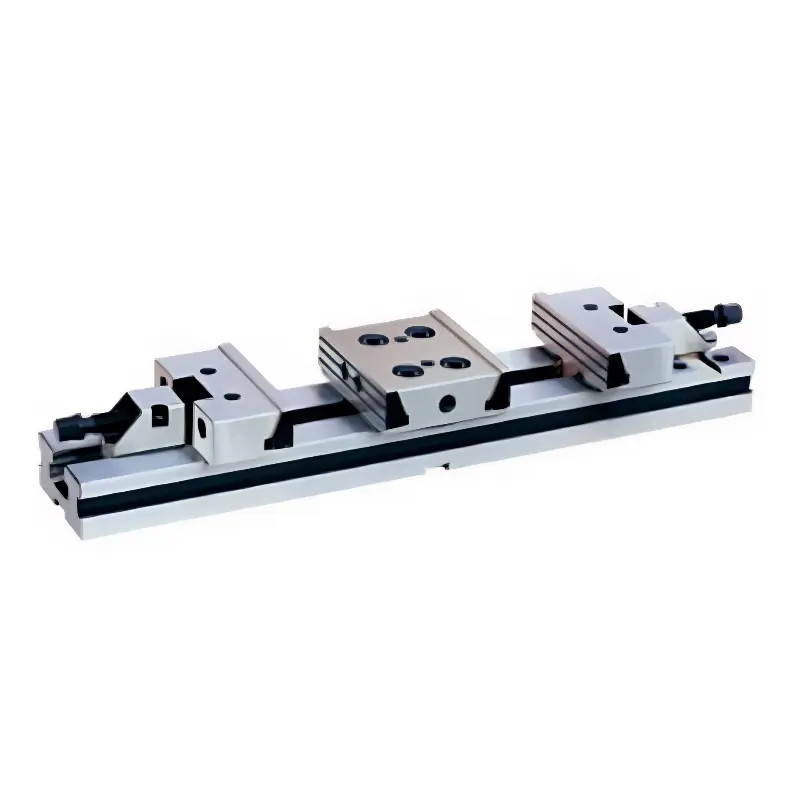

Cheap ZQ83 Single & Double Action Vise Supplier, Factory

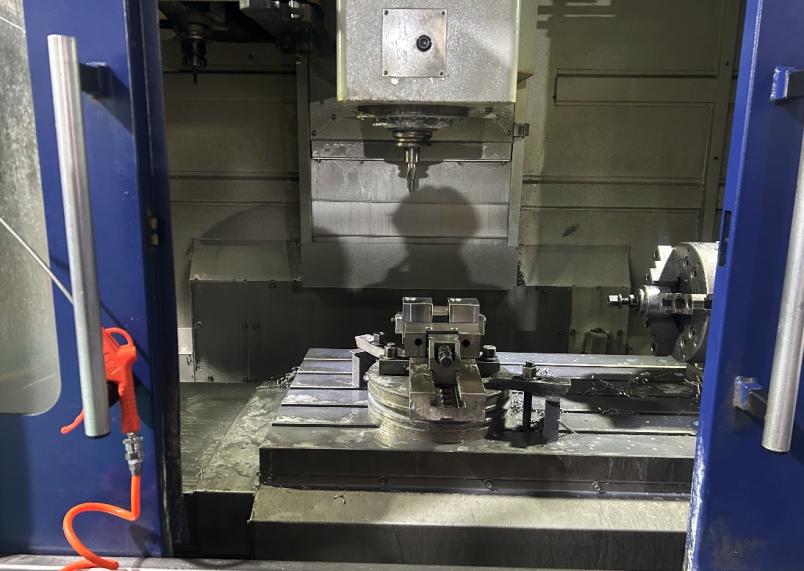

ZQ83 Single&Double Action Vise vise is a commonly used machine tool accessory, often used inÂ CNCÂ milling machines, drilling machines, grinding machines, etc., for securely clamping workpieces during cutting operations.

Send Inquiry

Product Description

Description

ZQ83 Single & Double Vise shares a similar structure with the ZQ80 Vise, comprising components such as a fixed vise body, a movable vise body, a lead screw and positioning device.

1) High Precision The use of high-quality materials and advanced manufacturing processes ensures the high precision and stability of the flat jaw pliers.

2) Large Opening It can hold workpieces in both directions or in one direction. Bidirectional holding can obtain two positioning references for the jaws, and multiple workpieces can be held at one time to reduce positioning errors.

3) High Cost Performance The price is relatively low, with high cost performance, and it is suitable for various processing occasions.

Material: high-quality alloy steel, the hardness of the working force is HRC58-62
Parallelism: 0.005mm/100mm, Perpendicularity: 0.005mm

Key Features

The clamping method is flexible
High positioning accuracy
Features a compact and concise structure
Sturdy and durable

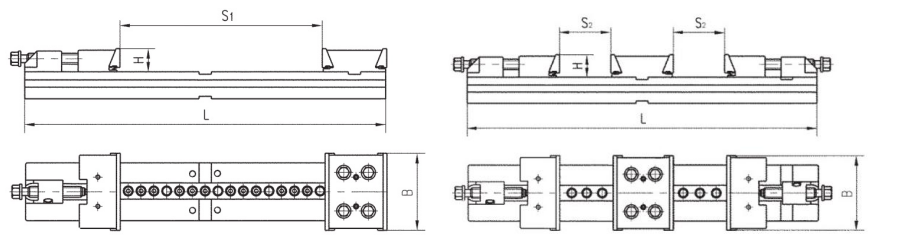

Technical Parameters

The width of the jaws typically ranges between 100 and 200mm. The height is usually between 30 to 65mm.

Model No. Single Action	S1 (mm)	Model No. Double Action	S2 (mm)	B (mm)	H (mm)	L (mm)
ZQ83100	290	ZQ83100-2	2X90	100	30	460
ZQ83125	320	ZQ83125-2	2X100	125	40	520
ZQ83150	360	ZQ83150-2	2X110	150	50	580
ZQ83150A	460	ZQ83150A-2	2X160	150	50	680
ZQ83175	400	ZQ83175-2	2X120	175	60	666
ZQ83175A	500	ZQ83175A-2	2X170	175	60	766
ZQ83175B	600	ZQ83175B-2	2X220	175	60	866
ZQ83175C	700	ZQ83175C-2	2X270	175	60	966
ZQ83200	500	ZQ83200-2	2X150	200	65	805
ZQ83200A	600	ZQ83200A-2	2X200	200	65	905
ZQ83200B	700	ZQ83200B-2	2X250	200	65	1105
ZQ83200C	800	ZQ83200C-2	2X300	200	65	1105
ZQ83200D	900	ZQ83200D-2	2X350	200	65	1205
