Wholesale QGG Precision Tool Vice MPM00330 Supplier, Factories
Wholesale QGG Precision Tool Vice MPM00330 Supplier, Factories
1 / 2
Wholesale QGG Precision Tool Vice MPM00330 Supplier, Factories
Wholesale QGG Precision Tool Vice MPM00330 Supplier, Factories

Wholesale QGG Precision Tool Vice MPM00330 Supplier, Factories

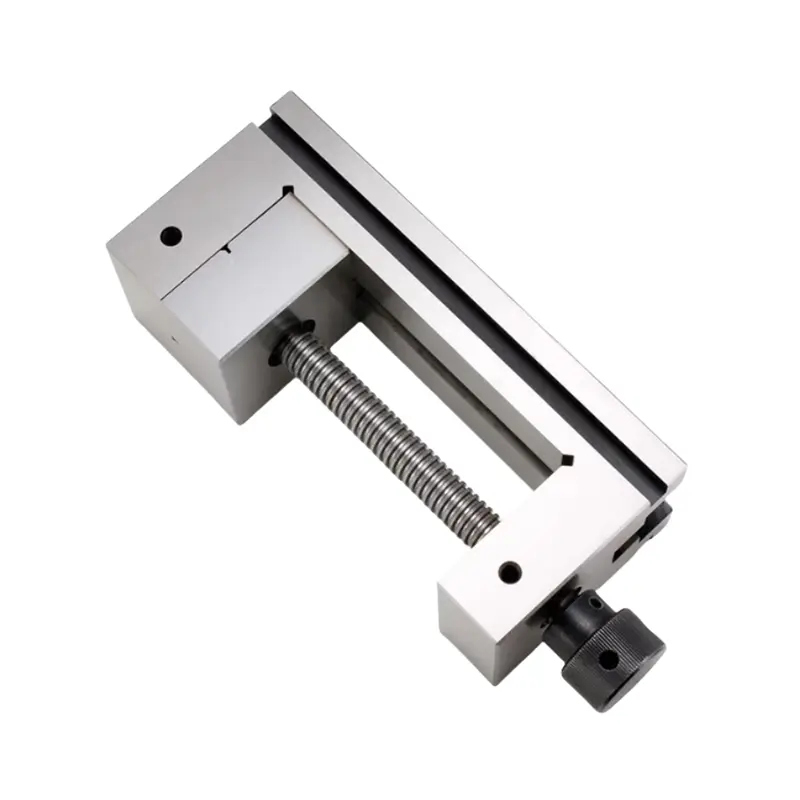

QGG precision tool vice, is made of three parts: vice jaw, screw rod and guide rail.


It serves applications in precision measurement and inspection, precision grinding, electrical discharge machining, among others, and is suitable for a wide range of machine tools, including grinding machines, milling machines, machining centers, and wire electrical discharge cutting machines.

Send Inquiry

Product Description

Description

Material: Constructed from premium alloy steel undergoing carburization, achieving a flat hardness of HRC58-62.

Structure design:

  • The jaws are usually designed with cross-shaped V-grooves, which can better fit the workpiece, increase friction and clamping stability, and prevent the workpiece from sliding during the processing.
  • Screw rods are generally hardened and thickened, and then turned to ensure smooth rotation and durability, and can provide sufficient clamping forced.
  • Guide rail, its surface precisely ground, ensures smooth movement of the jaws, guaranteeing the accuracy and repeatability of the clamping.
Features
  • Parallelism is reached at 0.005mm per 100mm, with verticality precision of 0.005mm.
  • Rapid clamping, simple and flexible operation.
  • Consistently maintains high precision regardless of being balanced, upright, or flat during use.
Specification

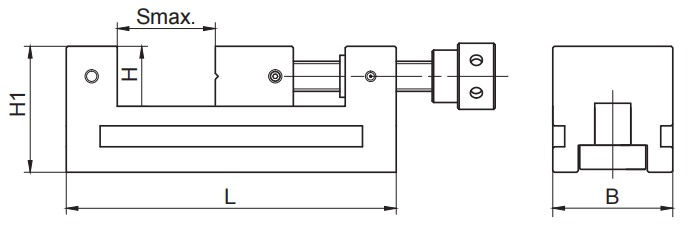

Parameter Specification
Model No B mm H mm H1 mm Smax mm L mm Weight kg
QGG50502550651553.0
QGG60602550551102.4
QGG63633265851903.8
QGG737335741002105.0
QGG808040841002206.5
QGG8888408812525011.0
QGG100100459512526013.0
QGG1251255011016030019.5
QGG12A1255011021035023.0
QGG1501505011017531523.8
Product Video
Application

1. Mechanical processing industry

Clamping workpieces of various shapes (shafts, discs, blocks) for turning, milling, and grinding.

2. Mould making industry

Clamping molds and components to ensure extreme processing accuracy and quality.

3. Precision measurement

Firmly securing workpieces onto measuring platforms for accurate tool-based inspection.

Service

Providing high-end CNC tools services to global customers:

  • Business Type: OEM & ODM Manufacturer
  • Supported Formats: DWG, PDF, IGS, STEP, SLDPRT, DXF, etc.
  • QC System: ISO9001: 2008
  • High precision, high quality, and tight tolerance
  • On-Time Delivery & Excellent After-Sales Service
FAQ
Q1: What is the hardness of the QGG series tool vise?
A1: It is made of high-quality alloy steel with a carburized surface, reaching a hardness of HRC58-62 for excellent durability.
Q2: What is the precision level of these vises?
A2: The parallelism and verticality are both maintained at a high precision of 0.005mm per 100mm.
Q3: Can these vises be used in an upright position?
A3: Yes, the design ensures high precision whether it is placed balanced, upright, or flat.
Q4: Are the jaws designed for specific shapes?
A4: The jaws feature cross-shaped V-grooves, making them ideal for clamping cylindrical and various shaped workpieces securely.
Q5: Do you offer customization for these CNC tools?
A5: Yes, we provide OEM and ODM services and can accept customization once a certain quantity is reached.
Q6: What models are available in the QGG range?
A6: We offer a full range of models from QGG50 (3.0kg) up to QGG150 (23.8kg) to suit different machining needs.
