Cheap CHM Precision Universal Vise MPM0356 Factories, Factory

CHMÂ precision univeral vise, also known as precision universal vice, is an important machine tool accessory in CNC machines. It achieves angle adjustment through a graduated dial, with specific advantages such as flexible angle adjustment and high precision. Â

Send Inquiry

Product Description

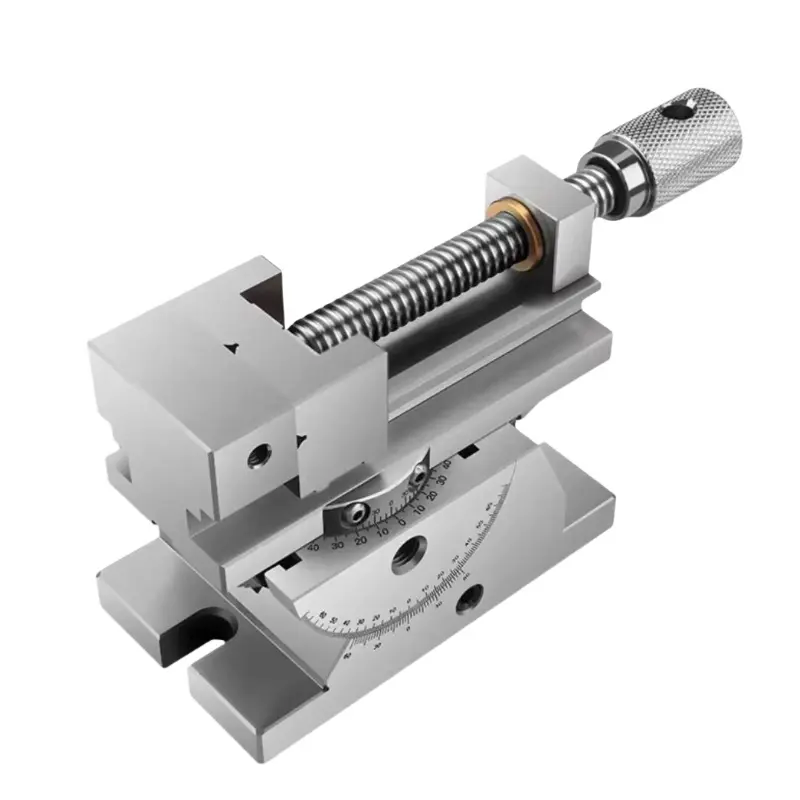

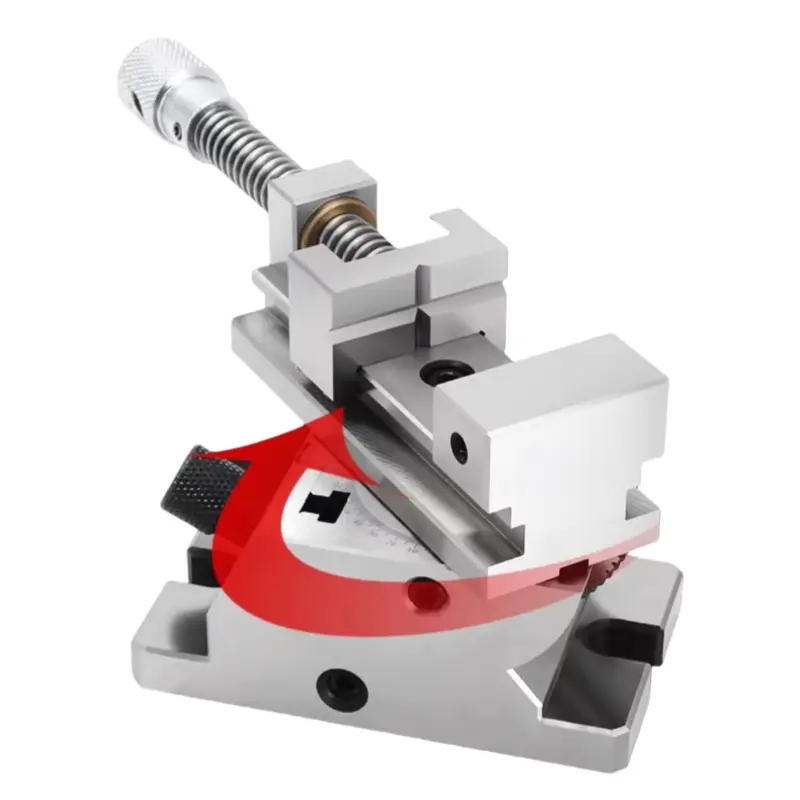

CHM precision universal Vise is made of two parts: vise body and swivel base. With the help of the dial, it can rotate within a 360° range on the horizontal plane and tilt 45° on the vertical plane. It is ideally used for precision grinding machines, milling machines, and other equipment for flat, inclined, and angular inclined hole processing.

Common specifications include CHM50, CHM80, CHM120, etc. Different models vary in jaw width, jaw height, maximum opening, and overall dimensions.

Key Features

1. Flexible Angle Adjustment It can fulfill the processing needs of a variety of angles.

2. High Precision The scale is accurate; parallelism can reach 100 mm / 0.005 mm, and verticality can reach 100 mm / 0.005 mm, making it suitable for precision machining.

3. Excellent Material Generally made of high-quality alloy steel or tool steel, providing strong tensile resistance and high durability against deformation.

4. Convenient Operation Angle adjustment is simple. By loosening or locking the corresponding screws, rotation angle fine-tuning can be achieved easily.

Technical Parameters

Model No	Jaw Width (mm)	Jaw Depth (mm)	Max. Opening (mm)	Outside Size (mm)
CHM50	50	25	70	180 × 72 × 122
CHM80	80	30	80	195 × 110 × 137
CHM120	120	40	155	400 × 180 × 210
