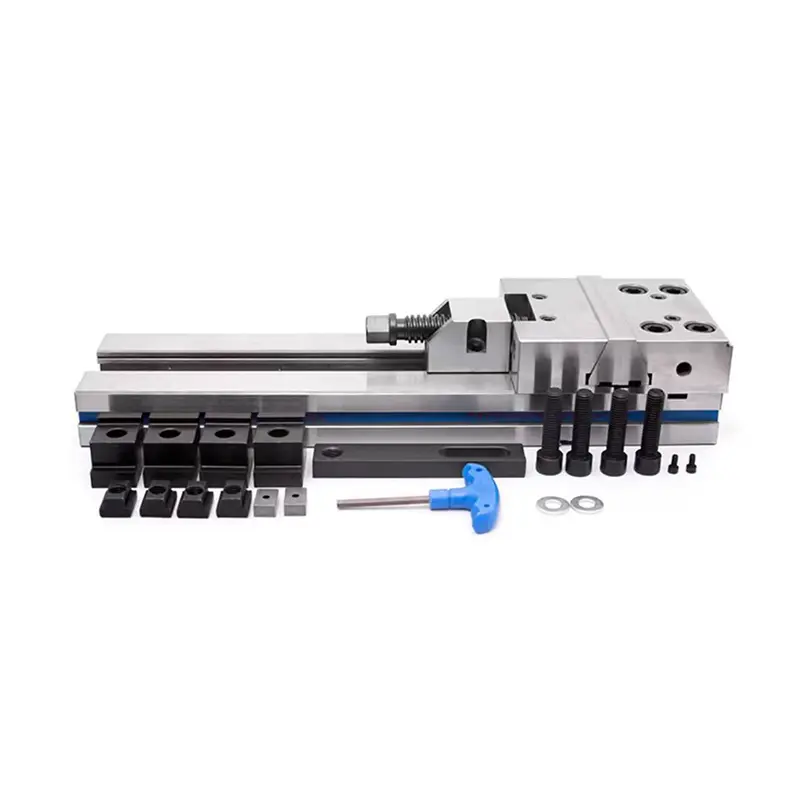

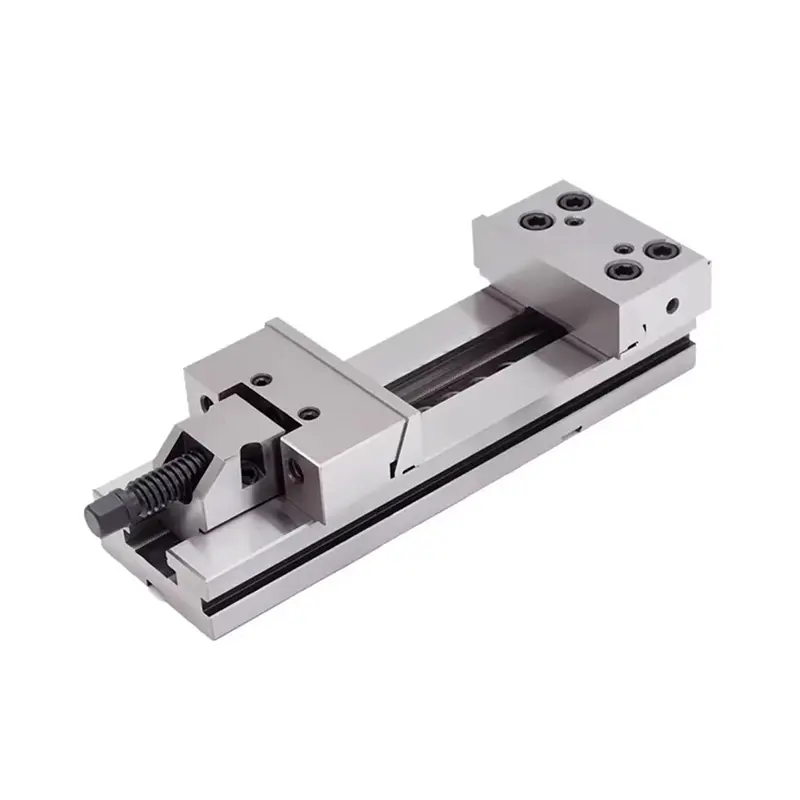

Precision modular Vice, also known as precision modular vise, is a kind of fixture widely used in precision machine tools such as machining centers, which is mainly used for clamping workpieces. It is composed of fixed vise body, moving vise body, lead screw, nuts and other parts, with high positioning accuracy and repeated positioning accuracy.

Send Inquiry

Product Description

Description

Made of high-quality alloy steel with carburizing treatment.
Surface working hardness HRC58-62.
Parallelism of 0.005mm/100mm, perpendicularity of 0.005mm.
Equipped with a detachable base for versatile setups.
The fixed jaw and movable jaw provide quick clamping and convenient operation.

Features

The jaws are precision machined to ensure indices of flatness, parallelism, and verticality achieve high levels. This design guarantees the positional accuracy of the workpiece once clamped, making it ideal for high-precision industrial tasks.

Specification

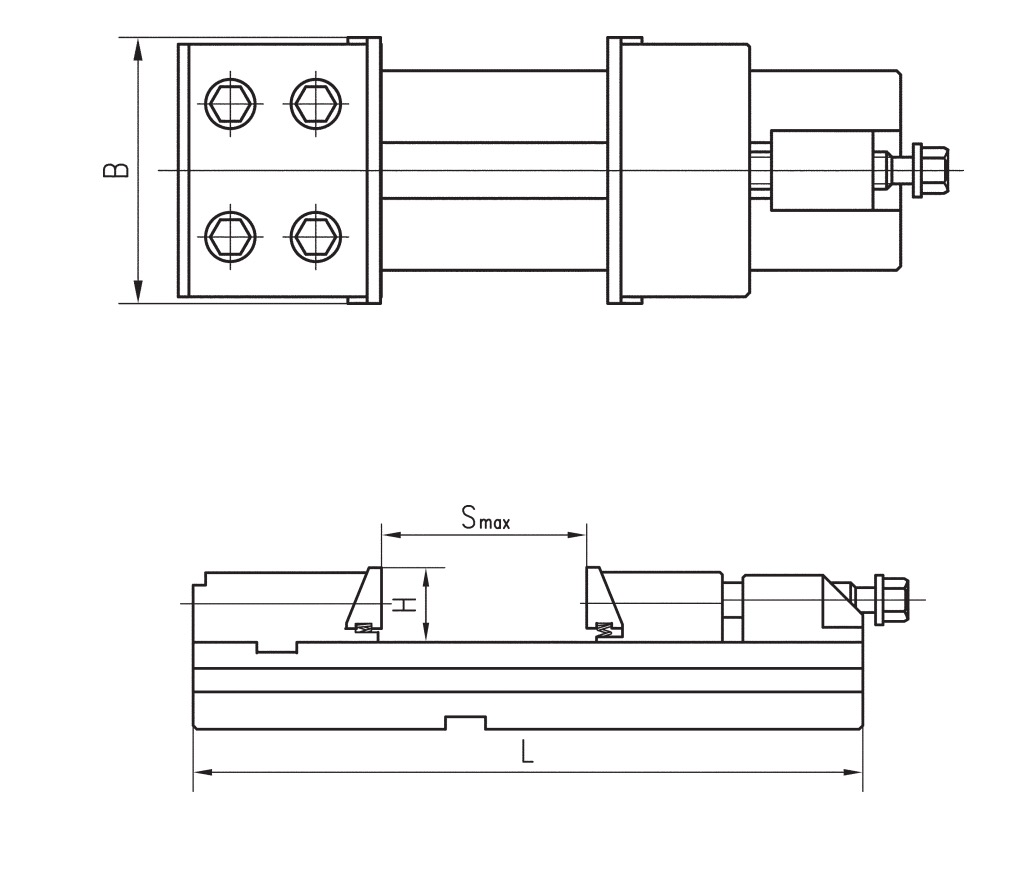

Item No	B mm	H mm	Smax mm	L mm	Clamping force (N)
GT100-I	100	30	100	270	3000
GT125-I	125	40	150	345	3000
GT150A-I	150	50	200	420	5000
GT150B-I	150	50	300	520	5000
GT150C-I	150	50	400	620	5000
GT175A-I	175	60	200	455	6000
GT175B-I	175	60	300	555	6000
GT175C-I	175	60	400	655	6000
GT175D-I	175	60	500	755	6000
GT175E-I	175	60	600	855	6000
GT200A-I	200	65	200	495	10000
GT200B-I	200	65	300	595	10000
GT200C-I	200	65	400	695	10000
GT200D-I	200	65	500	795	10000
GT200E-I	200	65	600	895	10000
GT300A-I	300	80	200	535	12000
GT300B-I	300	80	300	635	12000
GT300C-I	300	80	400	735	12000
GT300D-I	300	80	500	835	12000
GT300E-I	300	80	600	935	12000

Application

Mechanical Processing

Widely used in CNC machine tools and machining centers for milling, drilling, tapping, and turning precision parts.

Automobile Manufacture

Processing engine components and assembling parts where large metal parts require stable fixing for accuracy.

Aerospace Industry

Used for aircraft structural components and aero engine parts ensuring high-precision positioning.

Mould Making

Fixing mold materials during the processing of holes and cavities to ensure dimensional precision.

Electronic & Electrical

Fixing circuit boards and tiny components during assembly to ensure delicate processing accuracy.

Professional Services

Providing comprehensive CNC tool services to global customers:

Business Type: OEM & ODM Manufacturer
Supported Formats: DWG, PDF, IGS, STEP, SLDPRT, DXF, X_T, etc.
Customization: Available upon reaching minimum order quantities.
Quality Control: ISO9001: 2008 certified system.
Core Advantages: High precision, tight tolerances, competitive pricing, and excellent after-sales support.

FAQ

Q1: What material is the precision modular vice made of? A: It is constructed from high-quality alloy steel that has undergone carburizing treatment for enhanced durability.

Q2: What is the surface hardness of the jaws? A: The surface working hardness reaches HRC58-62, ensuring long-term wear resistance.

Q3: How accurate is the clamping system? A: The vice features a parallelism of 0.005mm/100mm and a perpendicularity of 0.005mm for extreme precision.

Q4: Can I request a custom size or design? A: Yes, we accept customization (OEM/ODM) once a certain order quantity is met. We support multiple DRW formats like STEP and DXF.

Q5: What industries commonly use this modular vice? A: It is widely used in mechanical processing, automobile manufacturing, aerospace, mould making, and the electronics industry.

Q6: What is the maximum clamping force available? A: Clamping force varies by model, ranging from 3000N for the GT100 series up to 12000N for the GT300 series.
