Wholesale ZQ80 Precision Horizontal Vertical Vise Supplier, Factories

Â ZQ80 Precision Horizontal Vertical Vise consists of a fixed vise body, a movable vise body, lead screw, jaw, base and a positioning device. It is a vise noted for its ease of operation, high precision, and versatility.

Send Inquiry

Product Description

Description

ZQ80 Precision Horizontal Vertical Vise is widely used in machining centers, CNC milling machines, boring machines, grinding machines and other machine tools. The material is high-quality alloy steel, the hardness of the working force is HRC58-62. Parallelism: 0.005mm/100mm, perpendicularity: 0.005mm.

Features

High precision

Superior material

Functional diversity

Reasonable jaw design

Convenient operation

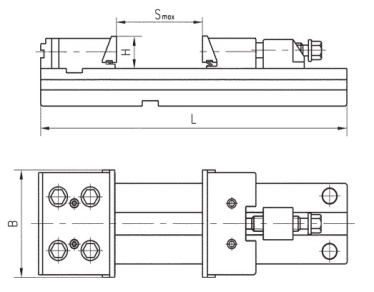

Specification

The width of the jaws typically ranges between 100 and 200mm. The height is usually between 30 to 65mm.

Model No	B (mm)	H (mm)	Smax (mm)	L (mm)
ZQ80100	100	30	100	270
ZQ80125	120	40	150	345
ZQ80150	150	50	200	420
ZQ80150A	150	50	300	520
ZQ80175	175	60	200	455
ZQ80175A	175	60	300	555
ZQ80175B	175	60	400	655
ZQ80175C	175	60	500	755
ZQ80200	200	65	200	495
ZQ80200A	200	65	300	595
ZQ80200B	200	65	400	695
ZQ80200C	200	65	500	795
ZQ80200D	200	65	600	895

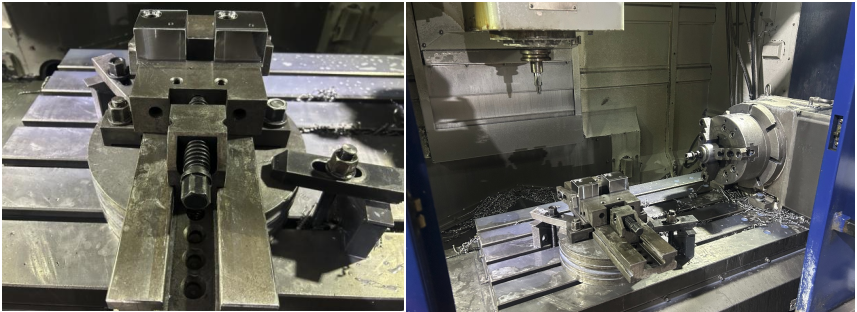

Application

1. Milling machine processing

The workpiece is firmly clamped to ensure stability during the milling of planes, grooves, gears, and other parts, preventing any shifting and ensuring processing accuracy.

2. Drilling machine processing

When drilling diverse types of holes, it ensures stable fixation of the workpiece, mitigating shaking during the drilling process and enhancing the verticality and positional precision of the drilling.

3. Grinding machine processing

For workpieces demanding high-precision grinding, including surface and cylindrical grinding, this vise offers stable support and positioning, ensuring the grinding surface achieves the required flatness and smoothness.
