Custom Underground LHD Loader Tilt Cylinder Manufacturers, Factory

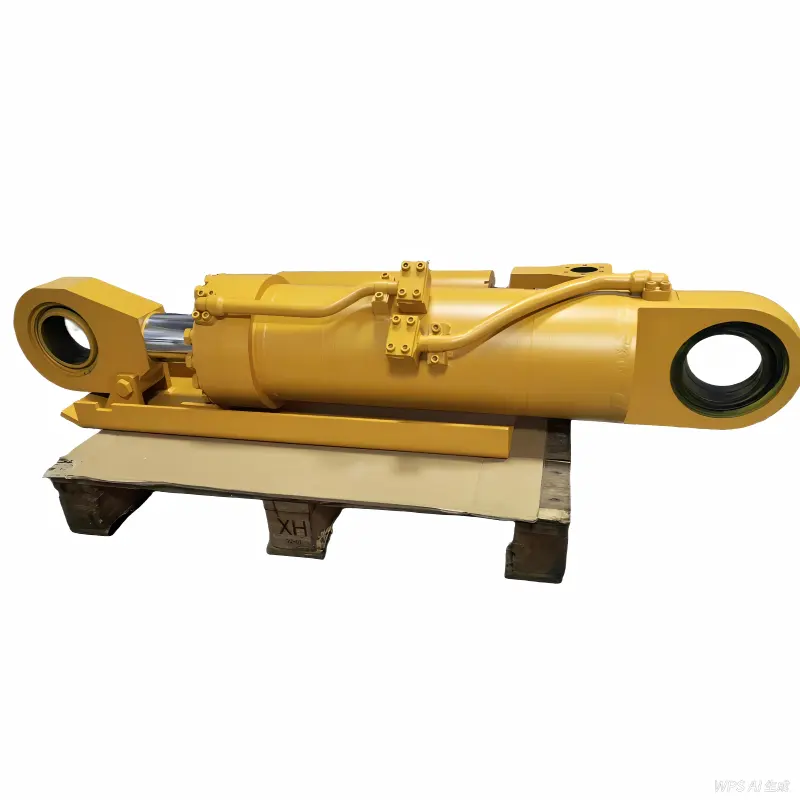

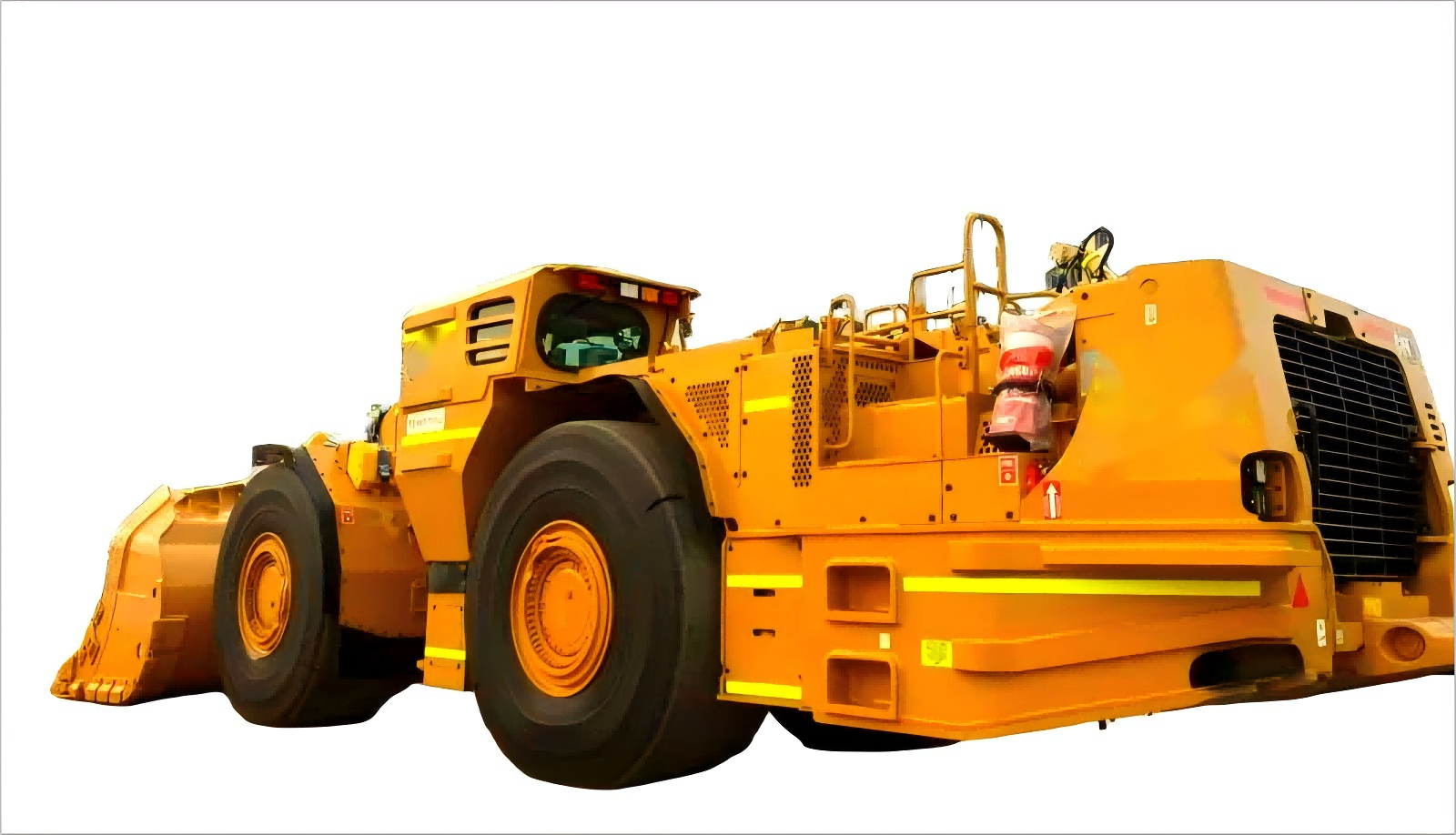

Underground LHD LoaderÂ Tilt CylinderÂ serves as a critical hydraulic actuator within Load-Haul-Dump (LHD) machines, designed to precisely control the tilting and dumping motions of the bucket or load compartment for efficient material discharge in confined underground spaces. Fabricated from high-strength steel and often featuring protective coatings, the cylinder is engineered to withstand extreme pressure, shock loads, and corrosive environments inherent to mining and tunneling operations. Contemporary designs emphasize robust sealing technology for enhanced reliability and may incorporate sensor interfaces for equipment health monitoring and automated control. The cylinderâ€™s performance is fundamental to the operational productivity and safety of the LHD, underscoring the necessity of regular maintenance to ensure durability and consistent functionality in demanding working conditions.

Send Inquiry

Product Description

Description

Underground LHD Loader Cylinder production must accommodate diverse machine models from various OEMs and complex operational requirements—including varying bore sizes, stroke lengths, and mounting configurations. By employing standardized, parametric design principles and a modular component library, we enable the rapid configuration of a comprehensive cylinder series while significantly shortening manufacturing lead times and streamlining inventory management.

Enhanced Reliability

Through rigorous finite element analysis (FEA) and proven multi-stage sealing systems, critical failure modes such as cylinder stalling, jerky movement (“stick-slip”), abnormal noise, leakage, and rod deformation under extreme shock loads are effectively mitigated.

Operational Efficiency

Integration of optimized flow paths and low-friction sealing technologies minimizes internal pressure drop and heat generation. This contributes to lower fuel consumption for diesel models or extended battery life for electric models.

Materials for Product

1. Cylinder Barrel

45# Carbon Steel: Quenched and tempered with chrome plating for wear resistance.
27SiMn Alloy Steel: High mechanical strength for heavy-duty shock loads.
304 Stainless Steel: Superior corrosion resistance for humid or chemical environments.

2. Piston Rod

42CrMo Alloy Steel: High base strength with hard chrome plating for durability.
17-4PH Stainless Steel: Exceptional strength and seawater/acid resistance.

3. Piston

45# Steel: Robust support for standard pressure conditions.
Aluminum Alloy: Significant weight reduction and improved system responsiveness.

4. Sealing System

Nitrile Rubber (NBR): Economical and compatible with mineral oils.
Polyurethane (PU): High wear resistance for high-pressure applications.

Technical Parameters

Hydraulic Cylinder Type	Bore Diameter (mm)	Rod Diameter (mm)	Stroke (mm)	Max Pressure (MPa)
Minimum Specification	50	30	300	35
Maximum Specification	560	480	5000	35

Industry Applications

With 20 years of expertise in hydraulic cylinder manufacturing, our solutions serve a diverse range of critical sectors:

Construction Machinery

Lifting and steering cylinders for cranes, forklifts, tractors, loaders, and excavators.

Industrial Equipment

Customized tie-rod cylinders and compact cylinder designs for factory automation.

Marine & Offshore

Heavy-duty, corrosion-resistant stainless steel cylinders for extreme environments.

Customization Services

We provide tailored piston hydraulic cylinder solutions. To begin your design, please provide:

Bore & Rod Diameter
Stroke Length
Operating Pressure
Mounting Style
Required Force Capacity (Push/Pull)

Frequently Asked Questions

Q1: What materials are available for the cylinder barrel?

We offer 45# Carbon Steel for standard use, 27SiMn Alloy Steel for high-pressure conditions, and 304 Stainless Steel for superior corrosion resistance.

Q2: How do you prevent leakage in LHD Loader cylinders?

We utilize proven multi-stage sealing systems and high-grade Polyurethane (PU) seals to ensure zero internal and external leakage even under extreme shock loads.

Q3: Can these cylinders be used in marine environments?

Yes, our Marine & Offshore range utilizes 17-4PH precipitation-hardening stainless steel and 304 stainless steel barrels specifically for seawater and high-humidity environments.

Q4: What is the maximum stroke length you can manufacture?

We can manufacture cylinders with a stroke length up to 5000mm, with bore diameters reaching up to 560mm.

Q5: How does the design contribute to fuel efficiency?

By optimizing flow paths and using low-friction sealing technologies, we minimize pressure drops and heat generation, reducing the overall power demand on the vehicle's hydraulic system.

Q6: Are the cylinders customizable for specific OEM models?

Absolutely. Our modular design principles allow us to rapidly configure cylinders to match specific bore, stroke, and mounting requirements of various OEM machine models.
