- Long-term sealing performance: High-quality seals and multi-channel combined seals (O-rings + dust rings) are used to prevent hydraulic oil leakage and contaminant intrusion. Acid and alkali resistant seals can be selected for special working conditions.
- Widely applicable: Suitable for various models of crawler excavators, such as PC60-7, PC120, PC200-6, PC200-7, PC300-6, PC300-7, etc.
- Working pressure: The rated working pressure is usually 10MPa, and the maximum allowable pressure can reach 16MPa.
- Working temperature: The designed temperature resistance range is -25℃ to +120℃.

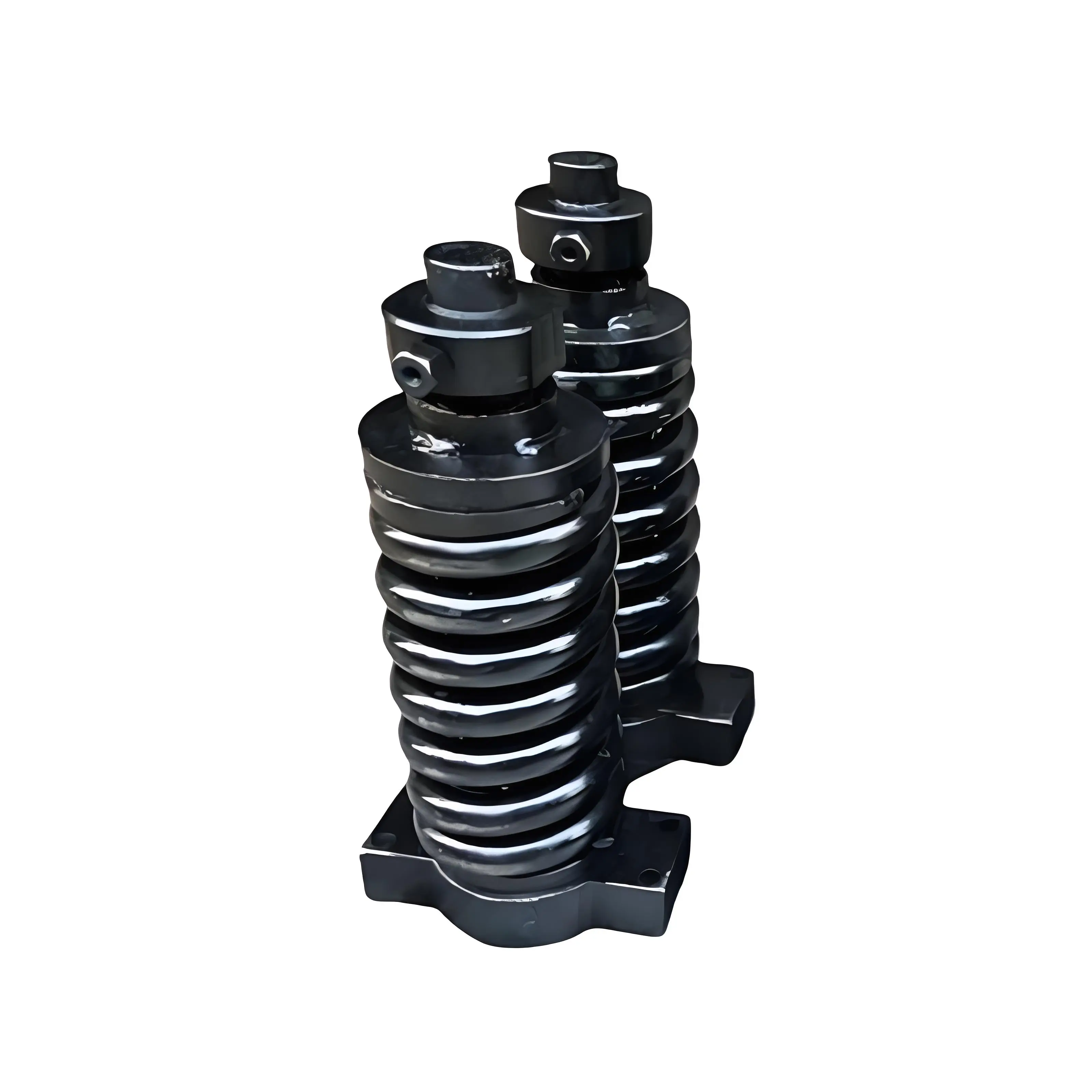

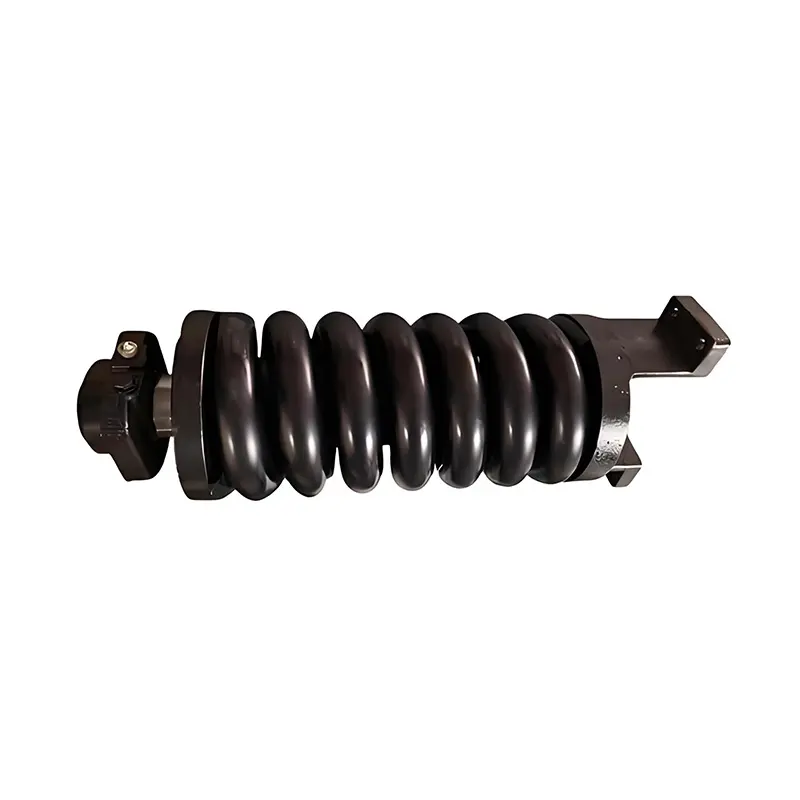

- Spring parameters: Taking PC120 tightening cylinder as an example, the spring free height is 507mm, the installation height is 390mm, and the load weight is 78500N.m.
- Comprehensive after-sales service: 2-year warranty on core components, video technical support, online support, spare parts, and on-site maintenance services are available.
- Customizable and reliable: Mechanical test reports and video factory inspections ensure the quality and reliability of the products to meet specific requirements.
Expertly engineered to control the action of track tension effectively for various machinery.
| Bore diameter |
280mm ~ 380mm |
| Rod diameter |
170mm ~ 300mm |
| Stroke |
700mm |
| Thrust force |
Maximum 3967.4KN (Bore diameter: 380mm / pressure 35MPa) |
| Material |
Carbon steel, Alloy steel, Stainless steel |
| Coating |
Sandblasting, primer paint, middle paint, finish paint |
| Customization is our first principle. |
With 20 years of experience in hydraulic cylinder manufacturing, these products are mainly used in:
Construction Machinery
Hydraulic lifting cylinders and steering cylinders for cranes, forklifts, tractors, loaders, and excavators.
Industrial Equipment
Hydraulic cylinders, tie rod cylinders, and compact cylinders.
Ships & Offshore
Heavy cylinders and stainless steel hydraulic cylinders.
Provide the following technical parameters for a customized Tightening Cylinder design:
- Bore and Rod diameter
- Stroke length
- Working pressure requirements
- Installation type
- Push or pull back capacity
Frequently Asked Questions
Q: What is the standard working pressure for these tightening cylinders?
A: The rated working pressure is typically 10MPa, with a maximum allowable safety limit of 16MPa.
Q: Can these cylinders operate in extreme temperature environments?
A: Yes, they are designed to withstand temperatures ranging from -25℃ up to +120℃.
Q: Which excavator brands/models are compatible?
A: They are widely compatible with major crawler excavators, including models like PC60, PC120, PC200, and PC300 series.
Q: What materials are available for custom manufacturing?
A: We use high-grade Carbon steel, Alloy steel, and Stainless steel depending on the application and environmental requirements.
Q: What kind of after-sales support is provided?
A: We offer a 2-year warranty on core components along with online technical support, video factory inspections, and spare parts availability.
Q: How do you ensure the sealing performance of the cylinders?
A: We utilize multi-channel combined seals (O-rings and dust rings) and offer specialized acid/alkali resistant options for harsh chemical or salt spray environments.
