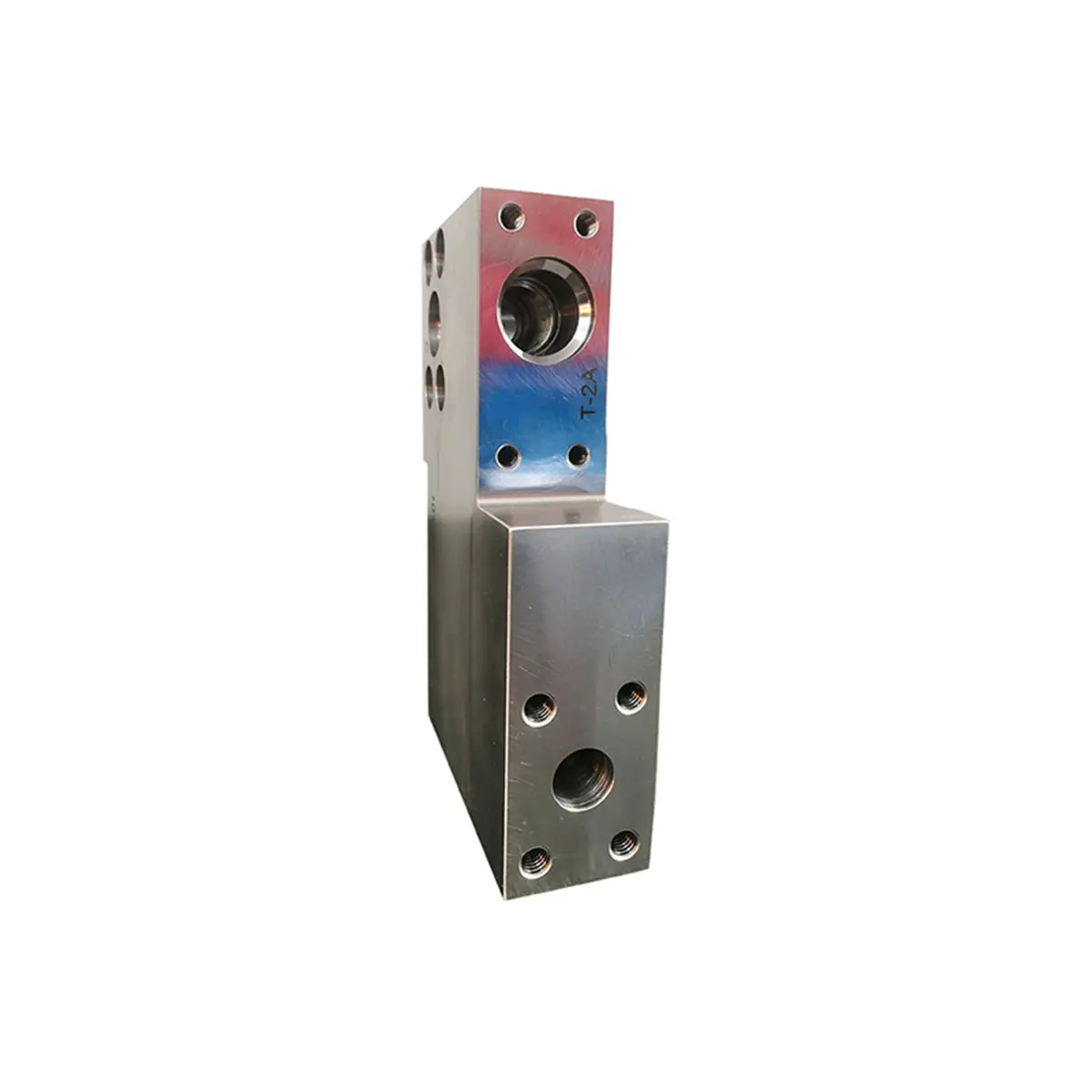

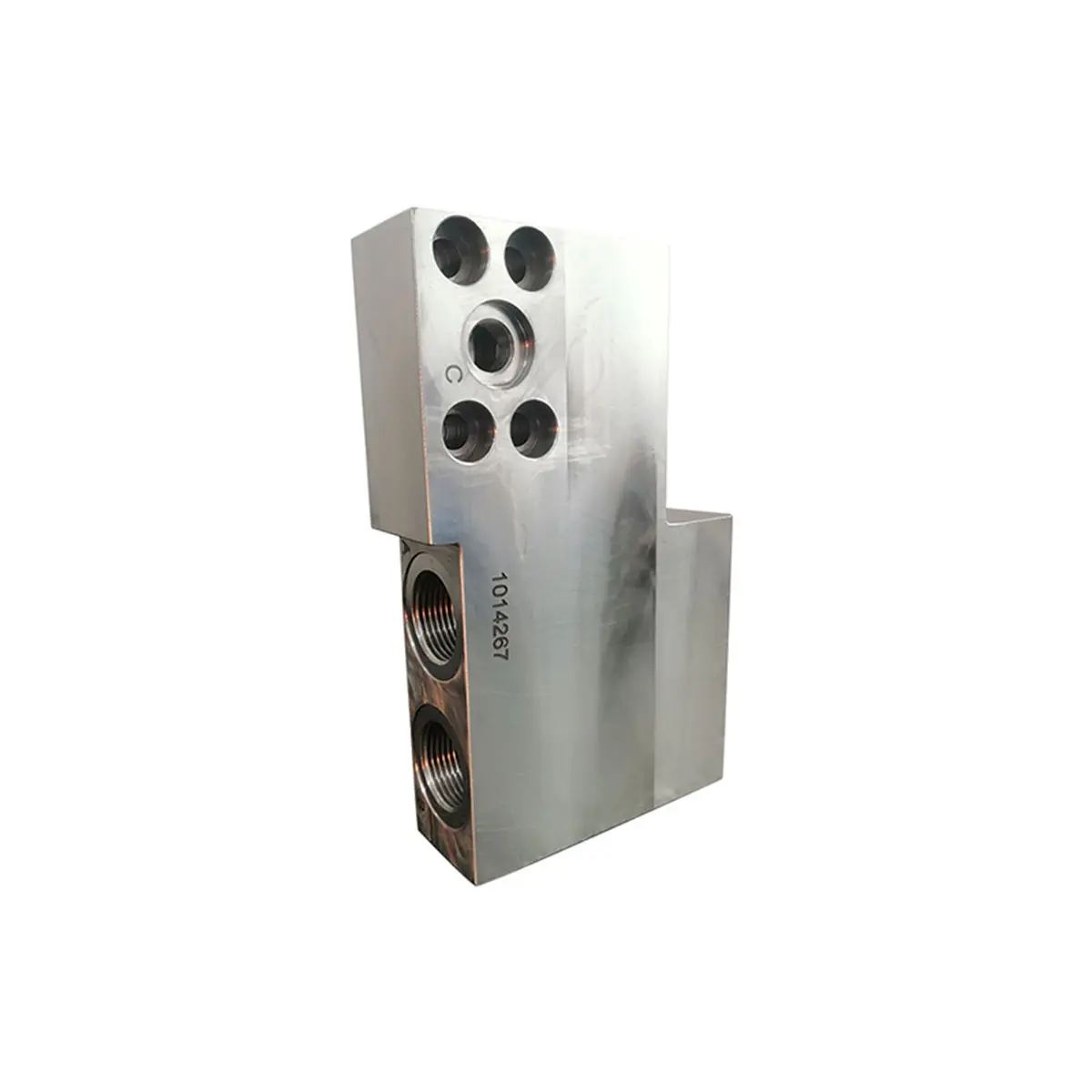

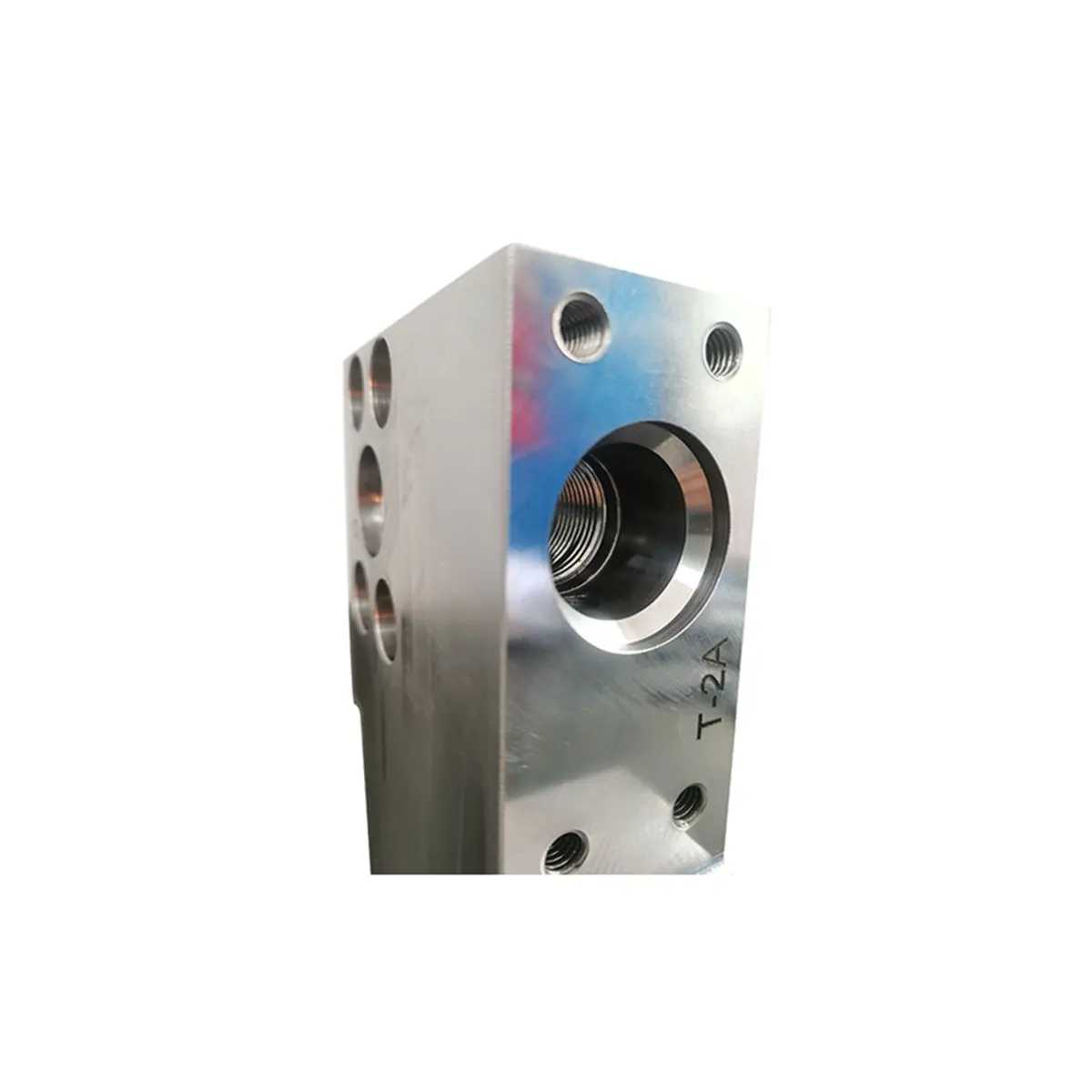

Hydraulic relief valve block is usually made of high-strength metal, and the internal precision machining of the oil channel connecting the various components. The core component is the relief valve, which is commonly direct-acting and pilot-operated, responsible for opening or closing the relief channel according to pressure changes.
When the system pressure does not reach the set value, the relief valve is closed and the oil flows to the actuator; once the pressure is too high, the relief valve opens and part of the oil flows back to the tank, thereby maintaining the system pressure stable.
Adaptable to various hydraulic systems, any product can be customized according to customer needs.
| Materials Available | Q355D forged, 20# steel, GGG50, etc. |
| Pressure | Up to 450 Bar |
| Flow | Up to 600 L/min |
| Screw Hole Accuracy | 7H |
| Roughness (Mounting Hole) | Ra0.8 |
| Roughness (O-ring Groove) | Ra1.6 |
| Roughness (General Flow) | Ra12.5 |
| Processing Type | Milling / Turning / Stamping |
A: We utilize high-strength metals including Q355D forged steel, 20# steel, and GGG50 to ensure durability and precision.
A: Yes, we specialize in manufacturing products based on customized drawings and specific customer requirements.
A: Our relief valve blocks can handle pressures up to 450 Bar and flow rates up to 600 L/min.
A: We offer a 1-year after-sales warranty service and provide 24-hour customer support for all our hydraulic products.
A: We use high-precision internal machining with strict quality inspections. General flow channels maintain a surface roughness of Ra12.5, while mounting holes reach Ra0.8.
A: The screw hole processing accuracy is strictly maintained at 7H to ensure reliable component integration.
