China Lift Cylinder Solenoid Valve MPM-LCSV12 Suppliers, Manufacturers

1 / 3

China Lift Cylinder Solenoid Valve MPM-LCSV12 Suppliers, Manufacturers

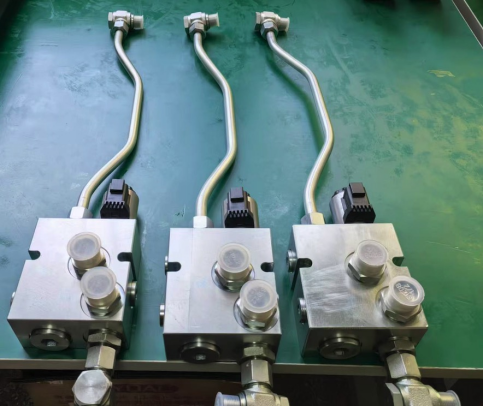

Lift Cylinder Solenoid Valve is a key component that controls the lift cylinder motion by changing the fluid channel through electromagnetic force control valve core.

Send Inquiry

Product Description

Description

Control lifting action: Control the movement of the valve core through electromagnetic force, and then control the flow direction and on-off of the hydraulic oil. When the bucket needs to be lifted, the solenoid valve is powered on and opened, and the hydraulic oil enters the lifting cylinder, pushing the piston up to lift the bucket.

Accurately control the lifting height: According to actual work needs, by controlling the power-on time and current size of the solenoid valve, the amount of hydraulic oil entering the lifting cylinder can be accurately controlled, thereby accurately controlling the lifting height of the bucket.

Ensure system safety: When the lifting system of the forklift has an abnormal situation, the Lift Cylinder Solenoid Valve can quickly cut off the oil circuit under the action of the control system to prevent the lifting cylinder from continuing to move, avoiding safety accidents.

Features

Adaptable to various hydraulic systems, any product can be customized according to customer needs.

Specification

Work Pressure	10 - 31.5MPa
Rated Voltage	DC 12V, 24V, etc.
Response Time	10 - 100ms
Flow Rate	80L/min
Protection Level	IP65 - IP67
Durability	200,000 - 1,000,000 action cycles
Media Compatibility	Mineral oil type hydraulic oil

Service

High-quality hydraulic products for nearly 20 years

1-year after-sales warranty service

24-hour customer service support

Customized drawing products per needs

Strict quality inspection protocols

Guaranteed on-time delivery

Frequently Asked Questions

How does the Lift Cylinder Solenoid Valve control the bucket?

It uses electromagnetic force to move the valve core, directing hydraulic oil flow into the lifting cylinder to push the piston for lifting or lowering.

Can the lifting height be precisely adjusted?

Yes, by controlling the solenoid valve's power-on time and current size, the volume of hydraulic oil can be accurately managed to reach specific heights.

What voltage options are available for these valves?

Standard options include DC 12V and 24V, and we can provide other custom voltage specifications according to your requirements.

Is the valve durable for high-frequency industrial use?

Yes, our valves are designed for high durability, with a life cycle ranging from 200,000 to 1,000,000 action cycles depending on the model.

What safety features does the valve provide?

It can quickly cut off the oil circuit during system abnormalities or pressure faults, preventing sudden drops or vehicle imbalance.

What is the warranty period for your hydraulic products?

We provide a 1-year after-sales warranty service to ensure the reliable performance of all our high-quality hydraulic products.
