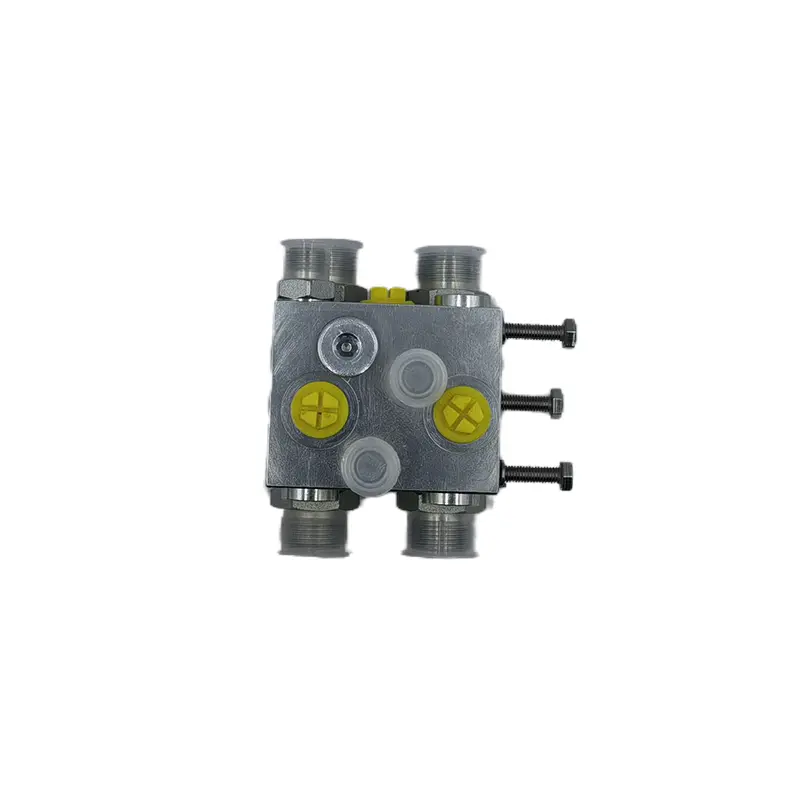

OEM Differential Lock Solenoid Valve MPM-DLSV12 Manufacturer, Factories

Differential Lock Solenoid Valve is a key component installed in the vehicle's differential lock system. It controls the valve core movement through electromagnetic force to achieve the locking and unlocking of the differential lock, thereby adjusting the power distribution between the left and right wheels of the vehicle and improving the vehicle's passability under complex road conditions.

Send Inquiry

Product Description

Dealing with complex road conditions When a forklift is driving on muddy, snowy, sandy and other complex roads, one side of the wheel may slip. The Differential Lock Solenoid Valve opens the differential lock to connect the left and right half-axles, transmitting power to the wheels with adhesion to pass through difficult sections.

Protect the transmission system When one side slips, the unlocked differential transfers most power to the slipping wheel, causing excessive wear. This valve controls the operation to avoid high rotation speeds and protect the transmission system.

Improve work efficiency Allows the forklift to respond to changes in road conditions in a timely manner. Quickly lock or release the differential lock to reduce delays caused by wheel slippage in construction sites or mines.

Technical Specification

Work Pressure	0.5 - 10MPa
Rated Voltage	DC 12V, 24V, etc.
Response Time	20 - 200ms
Flow	5 - 500L/min
Protection Level	IP65 - IP67
Durability	200,000 - 1,000,000 action cycles
Media Compatibility	Mineral oil type hydraulic oil (ISO VG32, VG46, etc.)

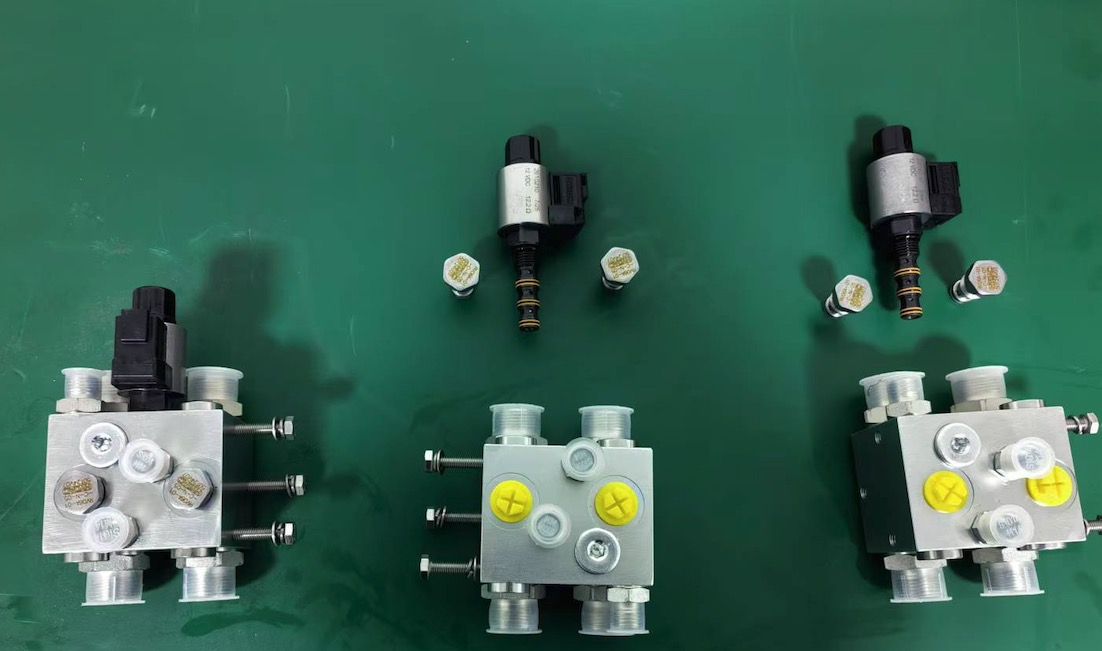

Differential Lock Solenoid Valve Specification

Our Service

Manufacturing high-quality hydraulic products for nearly 20 years

1-year after-sales warranty service

24-hour pre-sales and after-sales support

Customized drawing products per customer needs

Strict quality inspection for every product

Insist on on-time delivery

Frequently Asked Questions

1. How does the differential lock solenoid valve improve forklift safety?

By locking the differential during wheel slippage, it ensures equal torque to both wheels, providing traction on unstable ground and preventing loss of vehicle control.

2. What is the typical response time for this valve?

The valve features a rapid response time between 20ms and 200ms, allowing for near-instantaneous locking and unlocking of the differential.

3. Can this solenoid valve be used in extreme environments?

Yes, with a protection level of IP65 to IP67, it is designed to withstand dust and water ingress, making it suitable for harsh construction and mining sites.

4. What is the expected lifespan of the product?

Our valves are built for durability, rated for 200,000 to 1,000,000 action cycles depending on the specific operating conditions.

5. Is it compatible with standard hydraulic oils?

Yes, it is compatible with common mineral-based hydraulic oils such as ISO VG32 and VG46.

6. Do you offer customization for specific technical requirements?

We provide customized drawing and manufacturing services to meet specific pressure, voltage, or flow requirements based on your technical needs.
