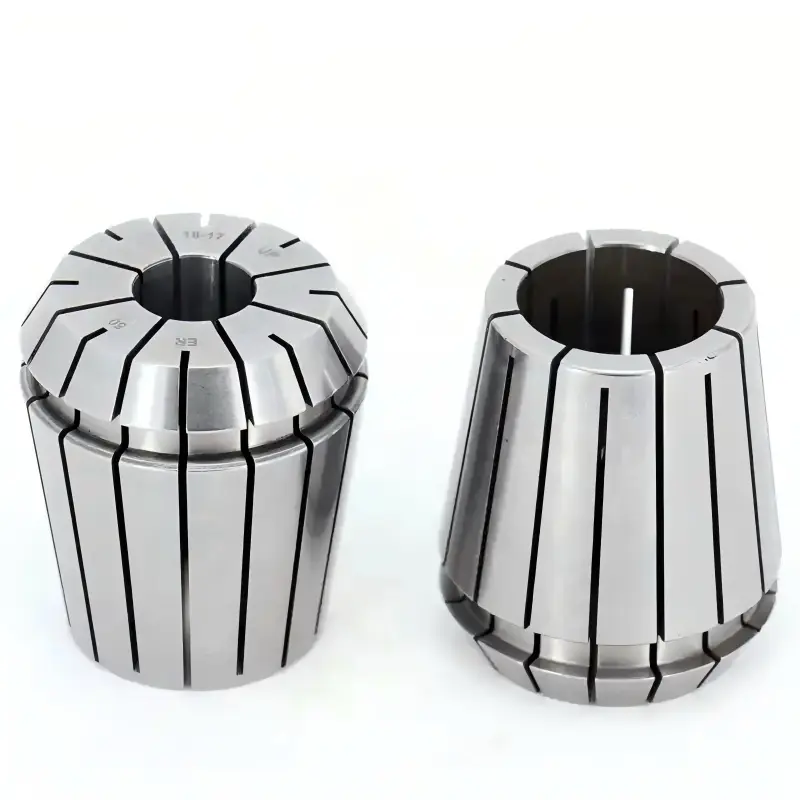

ERÂ collet is a common machine tool accessory, widely used in boring, milling, drilling, tapping, grinding, engraving and other CNC machine tool processingã€‚It is suitable for diverse types of tools, such as milling cutter, drill, tap and so on.

Send Inquiry

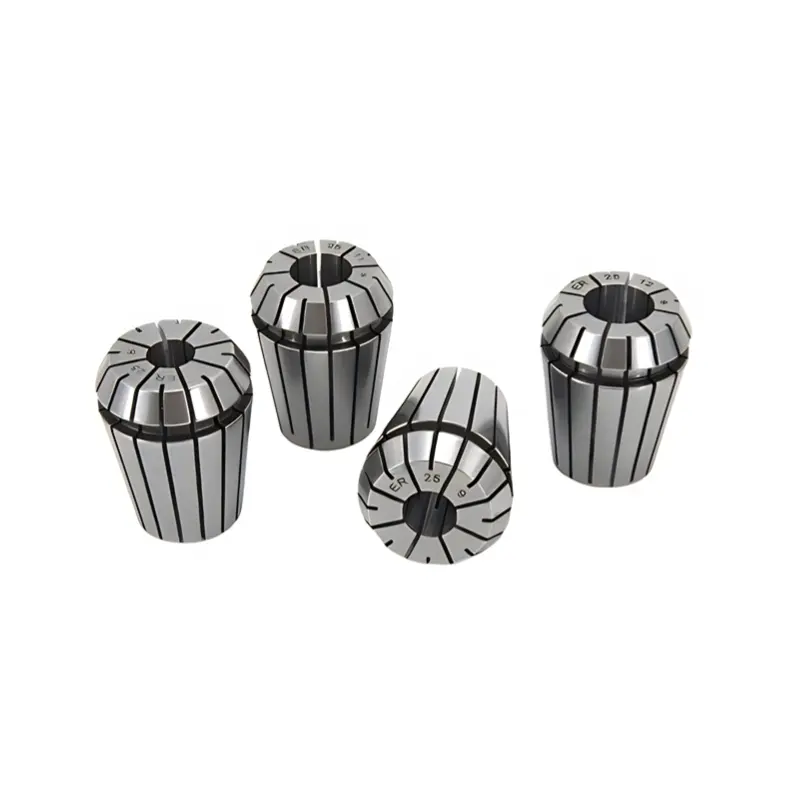

Product Description

Description

The ER collet has 16 slots to make it elastic, while both the collet and the lock nut have 16 degrees of taper. During operation, the taper causes the ER collet to undergo elastic deformation through compression, thereby narrowing the clamping aperture and securely clamping the tool.

Regarding the material, it is necessary to choose the collet with suitable hardness according to the processing technology. For instance, when dealing with hard materials, a collet made of 42CrMo with higher hardness should be chosen; for normal hardness requirements, spring steel can be utilized.

Key Features

1. High Clamping Force: Ensures firm fixation of the tool or workpiece, guaranteeing the stability of the processing process.

2. Wide Range: A versatile range of clamping, such as ER32 chuck which can hold 3-20mm tools.

3. High Precision: Small radial runout ensures superior machining accuracy.

4. Easy Operation: Simple structure facilitates convenient and rapid loading/unloading, improving work efficiency.

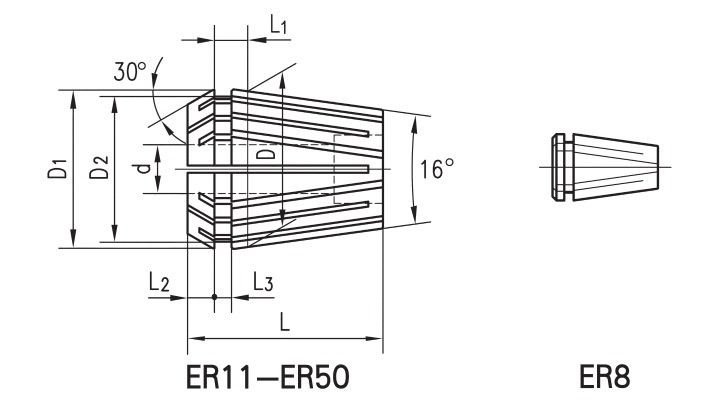

Technical Parameters

Model No.	d H7	D	D1	D2	L	L1	L2	L3	Capacity
ER8	1.0~5.0	8	8.45	6.5	13.5	2.98	1.5	1.2	0.5
ER11	1.0~7.0	11	11.5	9.5	18.0	3.80	2.5	2.0	0.5
ER16	1.0~10.0	16	17	13.8	27.5	6.26	4.0	2.7	0.5-1.0
ER20	1.0~13.0	20	21	17.4	31.5	6.36	4.8	2.8	0.5-1.0
ER25	1.0~16.0	25	26	22.0	34.0	6.66	5.0	3.1	0.5-1.0
ER32	2.0~20.0	32	33	29.2	40.0	7.16	5.5	3.5	0.5-1.0
ER40	3.0~26.0	40	41	36.2	46.0	7.66	1.0	4.1	1.0

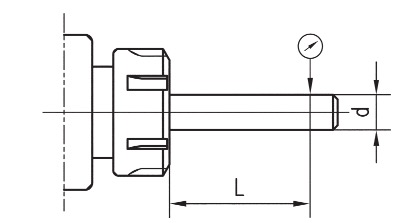

Parameter for Inspection of Accuracy:

D (mm)	L (mm)	Runout Tolerance (Standard Options)
Range	Length	A	B	C	I	II
1.0~1.6	6	0.005	0.008	0.010	0.010	0.015
>1.6~3.0	10	0.005	0.008	0.010	0.010	0.015
>3.0~6.0	16	0.005	0.008	0.010	0.010	0.015
>6.0~10.0	25	0.005	0.008	0.010	0.010	0.015
>10.0~18.0	40	0.005	0.008	0.010	0.015	0.020
