China Side Lock Tool Holder MPM-CTH386 Suppliers, Supplier

Side lock tool holder, also called end mill arbor or end mill adapter, itâ€™s a common CNC machining tool in cutting operations. It is secured to the tool holder's surface through the application of a set screw on its side.

Send Inquiry

Product Description

Description

The side-fixed tool holder features strong clamping force and torsional resistance, making it suitable for heavy cutting. It is the standard choice for holding square shank milling cutters and drills. It is easy to maintain, has low parts replacement costs, a sturdy structure, and good durability. However, be aware that radial runout may occur, and usually only one tool with a fixed shank diameter can be held.

When placing an order, kindly specify the standard form of the tool holder. For tool holders necessitating a central water inlet as well as a side-flange water inlet for cooling purposes, please indicate the AD/B type.

It is possible to provide balancing tool holders according to requirements. The standard precision is G6.3/12,000 rpm, while the precise precision is G2.5/20,000 rpm.

Features

1. Simple in structure Devoid of any complicated internal configurations or a multitude of components. It features a minimal number of parts and a relatively simple manufacturing process.

2. Convenient Clamping The cutting tool's clamping and disassembly can be swiftly and conveniently accomplished by simply tightening or loosening one or two screws.

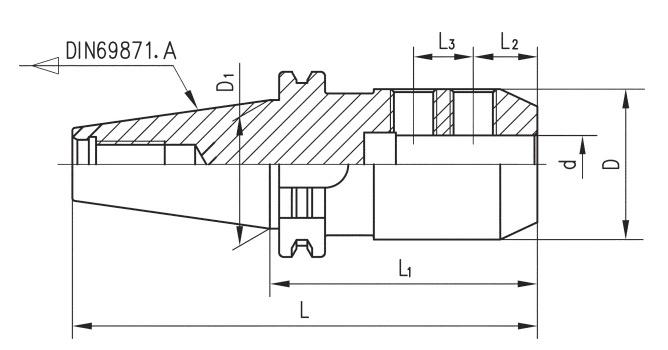

Technical Parameters

Order No. (DIN69871.A×d-L1)	L	D	D1	L2	L3	Wt (Kg)
DIN69871.A30×6-50	97.8	25	31.75	18	-	0.58
DIN69871.A30×8-50	97.8	28	31.75	18	-	0.64
DIN69871.A30×10-50	97.8	35	31.75	20	-	0.72
DIN69871.30×12-50	97.8	42	31.75	22.5	-	0.80
DIN69871.30×16-63	110.8	48	31.75	24	-	0.96
DIN69871.A40×6-50	118.4	25	44.45	18	-	0.92
DIN69871.A40×8-50	118.4	28	44.45	18	-	0.96
DIN69871.A40×10-50	118.4	35	44.45	20	-	2.00
DIN69871.A40×12-50	118.4	42	44.45	22.5	-	1.12
DIN69871.A40×20-63	131.4	52	44.45	25	-	1.32
DIN69871.A40×32-100	168.4	72	44.45	24	28	2.24
DIN69871.50×6-63	164.75	25	69.85	18	-	3.30
DIN69871.A50×12-63	164.75	42	69.85	22.5	-	3.42
DIN69871.A50×25-80	181.75	65	69.85	24	25	4.40
DIN69871.A40×40-120	221.75	90	69.85	30	32	4.72

Service & Advantages

Providing specialized CNC tools services to global customers with a focus on precision and reliability.

OEM & ODM Manufacturer

DWG, PDF, IGS, STEP Support

Customization Available

ISO9001: 2008 QC System

High Precision Tolerance

Defect-Free Quality Control

On-Time Global Delivery

Excellent After-Sales

Frequently Asked Questions

What are the primary applications for side-fixed tool holders?

They are ideal for heavy-duty cutting operations and are standard for holding square shank milling cutters and drills due to their high clamping force.

What precision levels do you offer for these tool holders?

We offer standard precision at G6.3/12,000 rpm and high-precision versions at G2.5/20,000 rpm upon request.

Can I order tool holders with internal cooling?

Yes, please specify the AD/B type when ordering if you require a central water inlet or side-flange water inlet for cooling.

What are the advantages of the side-fixed structure?

The structure is simple, durable, and cost-effective to maintain, offering exceptional torsional resistance during machining.

Do you support custom sizes or OEM orders?

Yes, we are an OEM/ODM manufacturer and can provide customization if a minimum order quantity is reached.

What drawing formats can you work with for technical specifications?

We accept various formats including DWG, PDF, IGS, STEP, SLDPRT, DXF, and many others to ensure accurate production.
